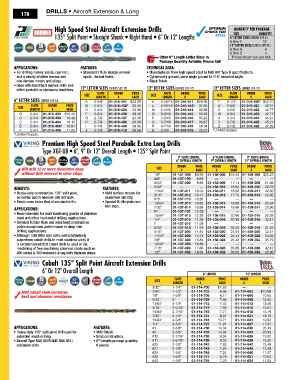

Page 180 - All Industrial Tool Supply | General Catalog

DRILLS • Aircraft Extension & Long
178

High Speed Steel Aircraft Extension Drills QuAntity PEr PAckAgE
135° Split Point • Straight Shank • Right Hand • 6" Or 12" Lengths SizE QuAntity
6" LEttEr SizES [SeRieS 502-6]
A thru F 12
12" LEttEr SizES [SeRieS 502-12]
A thru R 6
S thru Z 3
Other 6" Length Letter Sizes In Prices shown are per drill.
Package Quantity Avilable, Please Call
APPLICATIONS: FeATureS: TeChNICAL DATA:
• For drilling normal steels, cast iron, • Standard 2 flute design, normal • Manufactured from high speed steel to NAS 907 Type B specifications.
and a variety of other ferrous and spiral - helical flutes. • Cylindrically ground, point angle ground to 118° included angle.
non-ferrous metals and alloys. • Black finish.
• Used with hand held manual drills and
either portable or stationary machines. 12" LEttEr SizES [SeRieS 502-12] 12" LEttEr SizES [SeRieS 502-12] 12" LEttEr SizES [SeRieS 502-12]
FLutE
FLutE
FLutE
SizE LEngtH OrDEr PricE SizE LEngtH OrDEr PricE SizE LEngtH OrDEr PricE
EAcH
#
#
#
EAcH
EAcH
6" LEttEr SizES [SeRieS 502-6] A 2-5/8" 01-316-401 $23.99 K 2-15/16" 01-316-411 $28.56 T 3-1/2" 01-316-420* $42.70
FLutE OrDEr PricE B 2-3/4 01-316-402* 25.41 L 2-15/16 01-316-412* 31.92 U 3-5/8 01-316-421 40.31
SizE
LEngtH # EAcH D 2-3/4 01-316-404 23.99 N 3-1/16 01-316-414 32.88 V 3-5/8 01-316-422 42.77
B 2-3/4" 01-315-402 $10.42 F 2-3/4 01-316-406 28.45 O 3-3/16 01-316-415 35.23 W 3-3/4 01-316-423 42.77
C 2-3/4 01-315-403 10.42 G 2-7/8 01-316-407 28.56 P 3-5/16 01-316-416 35.23 X 3-3/4 01-316-424 45.21
D 2-3/4 01-315-404 10.15 H 2-7/8 01-316-408 28.56 Q 3-7/16 01-316-417 36.87 Y 3-7/8 01-316-425 45.21
E 2-3/4 01-315-405* 10.01 I 2-7/8 01-316-409 28.56 R 3-7/16 01-316-418 38.54 Z 3-7/8 01-316-426 47.65
F 2-3/4 01-315-406 11.22 J 2-7/8 01-316-410 28.56 S 3-1/2 01-316-419 40.31 *Limited Supply.
*Limited Supply.
Premium High Speed Steel Parabolic Extra Long Drills
Type XGT-UB • 6", 9" Or 12" Overall Length • 135° Split Point
4" FLutE LEngtH, 6" FLutE LEngtH, 9" FLutE LEngtH,

6" OvErALL LEngtH 9" OvErALL LEngtH 12" OvErALL LEngtH
OrDEr PricE OrDEr PricE OrDEr PricE
Will drill 12 or more diameters deep SizE # EAcH # EAcH # EAcH
without drill removal to clear chips 1/8" 01-137-008 $9.29 01-138-008 $16.25 01-139-008 $20.23
#29 01-137-129 9.81 — — — —
9/64" 01-137-009 9.81 01-138-009 17.11 01-139-009 21.03
BeNeFITS: FeATureS: 5/32" — — 01-138-010 16.84 01-139-010 20.75
• Heavy-duty construction, 135° split point, • Gold surface treated for 11/64" 01-137-011 10.54 01-138-011 18.00 01-139-011 22.30
17.73 01-139-012
01-138-012
01-137-012
3/16"
22.02
10.17
no center punch needed- will not walk. maximum lubricity. #10 01-137-110 10.35 — — — —
• Feeds rates twice that of standard drills. • Special Hi-Molybdenum 13/64" 01-137-013 10.65 01-138-013 19.93 01-139-013 25.34
tool steel. 7/32" 01-137-014 10.96 01-138-014 19.66 01-139-014 25.06
APPLICATIONS:
—
—
—
—
• Recommended for work hardening grades of stainless #1 01-137-101 12.39 01-138-015 20.66 01-139-015 30.38
01-137-015
12.39
15/64"
steel and other hard metal drilling applications. 1/4" 01-137-016 11.39 01-138-016 20.39 01-139-016 30.11
• Gyroidal Torsion flute and wide land construction F 01-137-216 11.69 — — — —
yields exceptional performance in deep hole 9/32" 01-137-010 11.91 01-138-018 22.45 01-139-018 31.23
drilling applications. 5/16" 01-137-020 11.84 01-138-020 22.51 01-139-020 32.41
• Although (UB) Ultra bore drills will substantially 11/32" 01-137-022 13.71 01-138-022 24.41 01-139-022 34.26
outperform cobalt drills in most stainless steel, it 3/8" 01-137-024 15.84 01-138-024 25.43 01-139-024 35.79
is recommended that cobalt drills to used in the 13/32" 01-137-026 16.66 — — — —
machining of free machining stainless steels such as 7/16" 01-137-028 17.88 01-138-028 35.69 01-139-028 42.12
400 series & 303 materials along with titanium alloys. 1/2" 01-137-032 18.53 01-138-032 39.63 01-139-032 52.96
cobalt 135° Split Point Aircraft Extension Drills
6" Or 12" Overall Length
6" LEngtH 12" LEngtH
FLutE OrDEr PricE OrDEr PricE
SizE
LEngtH # EAcH # EAcH
3/32" 1-1/4" 01-114-700 $7.52 — —
M42 cobalt steel increases 7/64" 1-1/2" 01-114-703 6.36 01-114-603 $10.89
heat and abrasion resistance 1/8" 1-5/8" 01-114-706 6.11 01-114-606 10.65
5/32" 2" 01-114-709 7.06 01-114-609 12.95
11/64" 2-1/8" 01-114-712 7.42 01-114-612 13.46
3/16" 2-5/16" 01-114-715 7.58 01-114-615 13.61
13/64" 2-7/16" 01-114-718 7.77 01-114-618 16.19
7/32" 2-1/2" 01-114-721 8.37 01-114-621 18.75
15/64" 2-5/8" 01-114-724 13.71 01-114-624 19.92
1/4" 2-3/4" 01-114-727 11.91 01-114-627 17.31
APPLICATIONS: FeATureS: #1 2-5/8" 01-114-730 14.04 01-114-630 20.43
• Heavy-duty 135° split point drill used for • M42 Cobalt. #2 2-5/8" 01-114-733 14.04 01-114-633 20.93
extended reach drilling. • Solid construction. #10 2-7/16" 01-114-736 9.04 01-114-636 13.92
• Aircraft Type NAS 907B AND NAS 907J • 6" Length package quantity: #11 2-5/16" 01-114-739 9.03 01-114-639 13.92
extension drills. 6 pieces #20 2-1/8" 01-114-742 7.83 01-114-642 13.49
#21 2-1/8" 01-114-745 7.83 01-114-645 13.49
#29 1-3/4" 01-114-748 7.24 01-114-648 11.47
#30 1-5/8" 01-114-751 6.78 01-114-651 10.65
#40 1-3/8" 01-114-754 7.23 01-114-654 11.05
