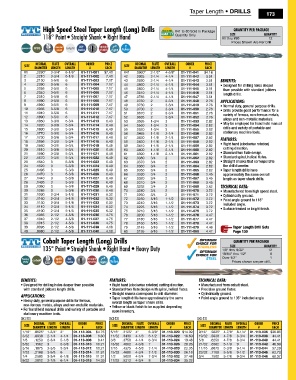

Page 175 - All Industrial Tool Supply | General Catalog

Taper Length • DRILLS
173

High Speed Steel Taper Length (Long) Drills #41 to 80 Sold In Package QuanTiTy Per PaCkage
Size
118° Point • Straight Shank • Right Hand Quantity Only. #1 thru #80 QuanTiTy
12
Prices Shown Are Per Drill

DeCimaL FLuTe OveraLL OrDer PriCe DeCimaL FLuTe OveraLL OrDer PriCe
Size Size
DiameTer LengTH LengTH # eaCH DiameTer LengTH LengTH # eaCH
#1 .2280" 3-3/4" 6-1/8" 01-111-001 $7.40 #41 .0960" 2-1/2" 4-5/8" 01-111-041 $4.18
2 .2210 3-3/4 6-1/8 01-111-002 7.40 42 .0935 2-1/4 4-1/4 01-111-042 3.51
3 .2130 3-5/8 6 01-111-003 7.17 43 .0890 2-1/4 4-1/4 01-111-043 3.51 Benefits:
4 .2090 3-5/8 6 01-111-004 7.17 44 .0860 2-1/4 4-1/4 01-111-044 3.51 • Designed for drilling holes deeper
5 .2055 3-5/8 6 01-111-005 7.17 45 .0820 2-1/4 4-1/4 01-111-045 3.51 than possible with standard jobbers
6 .2040 3-5/8 6 01-111-006 7.17 46 .0810 2-1/4 4-1/4 01-111-046 3.51 length drills.
7 .2010 3-5/8 6 01-111-007 7.17 47 .0785 2-1/4 4-1/4 01-111-047 3.51
8 .1990 3-5/8 6 01-111-008 7.17 48 .0760 2 3-3/4 01-111-048 2.76 APPLiCAtiOns:
9 .1960 3-5/8 6 01-111-009 7.17 49 .0730 2 3-3/4 01-111-049 2.76 • Normal duty, general purpose drills.
10 .1935 3-5/8 6 01-111-010 7.17 50 .0700 2 3-3/4 01-111-050 2.76 • Drills provide good performance for a
11 .1910 3-5/8 6 01-111-011 7.17 51 .0670 2 3-3/4 01-111-051 2.76 variety of ferrous, non-ferrous metals,
12 .1890 3-5/8 6 01-111-012 7.17 52 .0635 2 3-3/4 01-111-052 2.76
13 .1850 3-3/8 5-3/4 01-111-013 6.49 53 .0595 1-3/4 3 01-111-053 2.82 alloys and non-metallic materials.
14 .1820 3-3/8 5-3/4 01-111-014 6.49 54 .0550 1-3/4 3 01-111-054 2.82 • May be employed for hand held manual
15 .1800 3-3/8 5-3/4 01-111-015 6.49 55 .0520 1-3/4 3 01-111-055 2.82 drills and variety of portable and
16 .1770 3-3/8 5-3/4 01-111-016 6.49 56 .0465 1-1/8 2-1/4 01-111-056 2.82 stationary machine tools.
17 .1730 3-3/8 5-3/4 01-111-017 6.49 57 .0430 1-1/8 2-1/4 01-111-057 2.82 feAtures:
18 .1695 3-3/8 5-3/4 01-111-018 6.49 58 .0420 1-1/8 2-1/4 01-111-058 2.82
19 .1660 3-3/8 5-3/4 01-111-019 6.49 59 .0410 1-1/8 2-1/4 01-111-059 2.82 • Right hand (clockwise rotation)
20 .1610 3-3/8 5-3/4 01-111-020 6.49 60 .0400 1-1/8 2-1/4 01-111-060 2.82 cutting direction.
21 .1590 3-3/8 5-3/4 01-111-021 6.49 61 .0390 1-1/8 2-1/4 01-111-061 2.82 • Standard two flute design.
22 .1570 3-3/8 5-3/4 01-111-022 6.49 62 .0380 3/4 2 01-111-062 2.82 • Standard spiral, helical flutes.
23 .1540 3 5-3/8 01-111-023 6.49 63 .0370 3/4 2 01-111-063 2.82 • Straight shanks that correspond to
24 .1520 3 5-3/8 01-111-024 6.49 64 .0360 3/4 2 01-111-064 2.82 the drill diameter.
25 .1495 3 5-3/8 01-111-025 6.49 65 .0350 3/4 2 01-111-065 2.82 • Taper length drills have
26 .1470 3 5-3/8 01-111-026 6.49 66 .0330 3/4 2 01-111-066 3.45 approximately the same overall
27 .1440 3 5-3/8 01-111-027 6.49 67 .0320 3/4 2 01-111-067 3.45 length as taper shank drills.
28 .1405 3 5-3/8 01-111-028 6.49 68 .0310 3/4 2 01-111-068 3.45
29 .1360 3 5-3/8 01-111-029 6.49 69 .0292 3/4 2 01-111-069 3.62 teChniCAL DAtA:
30 .1285 3 5-3/8 01-111-030 6.49 70 .0280 3/4 2 01-111-070 3.72 • Manufactured from high speed steel.
31 .1200 2-3/4 5-1/8 01-111-031 6.32 71 .0260 3/4 2 01-111-071 3.72 • Cylindrically ground.
32 .1160 2-3/4 5-1/8 01-111-032 6.32 72 .0250 5/16 1-1/2 01-111-072 3.72 • Point angle ground to 118°
33 .1130 2-3/4 5-1/8 01-111-033 6.32 73 .0240 5/16 1-1/2 01-111-073 3.72 included angle.
34 .1110 2-3/4 5-1/8 01-111-034 6.32 74 .0225 5/16 1-1/2 01-111-074 3.72 • Surface treated or bright finish.
35 .1100 2-3/4 5-1/8 01-111-035 6.32 75 .0210 5/16 1-1/2 01-111-075 3.72
36 .1065 2-1/2 4-5/8 01-111-036 4.75 76 .0200 5/16 1-1/2 01-111-076 4.47
37 .1040 2-1/2 4-5/8 01-111-037 4.75 77 .0180 5/16 1-1/2 01-111-077 4.47
38 .1015 2-1/2 4-5/8 01-111-038 4.75 78 .0160 5/16 1-1/2 01-111-078 4.47
39 .0995 2-1/2 4-5/8 01-111-039 4.18 79 .0145 5/16 1-1/2 01-111-079 4.46 Taper Length Drill Sets
40 .0980 2-1/2 4-5/8 01-111-040 4.18 80 .0135 5/16 1-1/2 01-111-080 4.47 Page 130
Cobalt Taper Length (Long) Drills QuanTiTy Per PaCkage
Size
135° Point • Straight Shank • Right Hand • Heavy Duty 1/8" thru 9/32" QuanTiTy
12
19/64" thru 1/2" 6
Over 1/2" 1
Prices shown are per drill.

Benefits: feAtures: teChniCAL DAtA:
• Designed for drilling holes deeper than possible • Right hand (clockwise rotation) cutting direction. • Manufactured from cobalt steel.
with standard jobbers length drills. • Standard two flute design with spiral, helical flutes. • Precision ground flutes.
APPLiCAtiOns: • Straight shanks correspond to drill diameter. • Cylindrically ground.
• Taper length drills have approximately the same
• Point angle ground to 135° included angle.
• Heavy duty, general purpose drills for ferrous, overall length as taper shank drills.
non-ferrous metals, alloys and non-metallic materials. • Yellow or black finish to be supplied depending
• For hand held manual drills and variety of portable and upon inventory.
stationary machine tools.
[ACL-23] [ACL-23] [ACL-23]
DeCimaL FLuTe OveraLL OrDer PriCe DeCimaL FLuTe OveraLL OrDer PriCe DeCimaL FLuTe OveraLL OrDer PriCe
Size Size Size
DiameTer LengTH LengTH # eaCH DiameTer LengTH LengTH # eaCH DiameTer LengTH LengTH # eaCH
1/16" .0625" 1-3/4" 3" 01-113-004 $4.75 5/16" .3125" 4" 6-3/8" 01-113-020 $14.39 9/16" .5625" 4-7/8" 8-1/4" 01-113-036 $38.05
3/32 .0938 2-1/4 4-1/4 01-113-006 6.60 11/32 .3438 4-1/8 6-1/2 01-113-022 16.60 19/32 .5938 4-7/8 8-3/4 01-113-038 44.41
1/8 .1250 2-3/4 5-1/8 01-113-008 8.41 3/8 .3750 4-1/4 6-3/4 01-113-024 19.48 5/8 .6250 4-7/8 8-3/4 01-113-040 44.41
5/32 .1562 3 5-3/8 01-113-010 10.21 13/32 .4062 4-3/8 7 01-113-026 20.26 21/32 .6562 5-1/8 9 01-113-042 48.99
3/16 .1875 3-3/8 5-3/4 01-113-012 10.21 7/16 .4375 4-5/8 7-1/4 01-113-028 22.35 11/16 .6875 5-3/8 9-1/4 01-113-044 57.29
7/32 .2188 3-5/8 6 01-113-014 11.91 15/32 .4688 4-3/4 7-1/2 01-113-030 26.18 23/32 .7188 5-5/8 9-1/2 01-113-046 62.70
1/4 .2500 3-3/4 6-1/8 01-113-016 11.91 1/2 .5000 4-3/4 7-3/4 01-113-032 27.48 3/4 .7500 5-7/8 9-3/4 01-113-048 66.37
9/32 .2812 3-7/8 6-1/4 01-113-018 14.39 17/32 .5312 4-3/4 8 01-113-034 35.22
