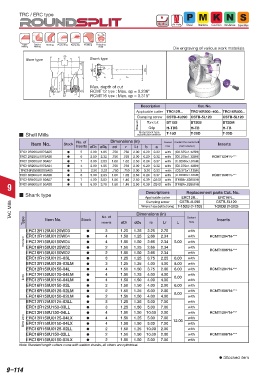

Page 700 - Tungaloy Catalog

TRC / ERC type
R
6, 8 in Air Hole Steel Stainless Cast Iron Non-ferrous Superalloys

R R R
Face Radius Slotting Pocketing Ramping Profiling Enlarging
Milling Milling Hole
Die engraving of various work materials
øDb
Bore type ød a Shank type
b
øD1
R øDc øDs
ap Lf R s
Lf
L
Max. depth of cut
ap RCMT12 type : Max. ap = 0.236"
øDc
øD1 RCMT16 type : Max. ap = 0.315"
Description Cat. No.
Applicable cutter TRC12R... TRC16R200~400... TRC16R500...
Clamping screw CSTB-4L090 CSTB-5L120 CSTB-5L120
Wrench Torx bit BT15S BT20S BT20M

Grip H-TBS H-TB H-TB
Mono block type T-15D T-20D T-20D
Shell Mills substitution wrench
Item No. Stock No. of Dimensions (in) Coolant Coolant thru center bolt Inserts
Inserts øD1 øDb ød r Lf b a hole ( Not Included )
TRC12R200U0075A05  5 2.00 1.85 .750 .750 2.00 0.20 0.32 with (C0.375x1.125H)
TRC12R250U0075A06  6 2.50 2.32 .750 .750 2.00 0.20 0.32 with (C0.375x1.125H) RCMT1204*N-***
TRC12R300U0100A07  7 3.00 2.83 1.00 1.02 2.50 0.24 0.37 with (C.02000x1.375H)
TRC16R200U0075A04  4 2.00 1.85 .750 .750 2.00 0.20 0.32 with (C0.375x1.125H)
TRC16R250U0075A05  5 2.50 2.32 .750 .750 2.00 0.20 0.32 with (C0.375x1.125H)
TRC16R300U0100A06  6 3.00 2.83 1.00 1.02 2.50 0.24 0.37 with (C.02000x1.375H) RCMT1606*N-***
TRC16R400U0150A07  7 4.00 3.82 1.50 1.46 2.50 0.39 .0243 with (TMBA-.02850H)
9 TRC16R500U0150A08  8 5.00 3.78 1.50 1.46 2.50 0.39 .0243 with (TMBA-.02850H)

Shank type Descriptions Replacement parts Cat. No.
Applicable cutter CSTB-4L090 CSTB-5L120
ERC12R...
ERC16R...
Clamping screw
TAC Mills Dimensions (in) T-15DB (T-15D) T-20DB (T-20D)
Wrench (substitutions)
No. of
Type Item No. Stock inserts øD1 øDs rs Lf L Coolant Inserts
Hole
ERC12R125U0125W03  3 1.25 1.25 2.25 2.75 with
Standard ERC12R150U0125W04  4 1.50 1.25 2.66 2.34 5.00 with RCMT1204*N-***
ERC12R150U0150W04
2.66
4
1.50
2.34
1.50
with

ERC16R150U0125W02
ERC16R150U0150W02  2 1.50 1.25 2.66 2.34 with RCMT1606*N-***
1.50
2.66
2.34
with
1.50
2

ERC12R125U0125-03L  3 1.25 1.25 3.75 2.25 6.00 with
ERC12R125U0125-03LM  3 1.25 1.25 4.00 4.00 8.00 with
ERC12R150U0150-04L  4 1.50 1.50 3.75 2.00 6.00 with RCMT1204*N-***
ERC12R150U0125-04LM  4 1.50 1.25 4.00 4.00 with
Long ERC12R150U0150-04LM  4 1.50 1.50 4.00 4.00 8.00 with
ERC16R150U0150-02L  2 1.50 1.50 4.00 2.00 6.00 with
ERC16R150U0125-02LM  2 1.50 1.25 6.00 2.00 8.00 with RCMT1606*N-***
ERC16R150U0150-02LM  2 1.50 1.50 4.00 4.00 with
ERC12R125U0125-03LL  3 1.25 1.25 5.00 7.00 with
ERC12R125U150-03LL  3 1.25 1.50 10.00 7.00 with
5.00
Extra Long ERC12R150U150-04LL  4 1.50 1.25 5.00 7.00 12.00 with RCMT1204*N-***
2.00
4
1.50
1.50
ERC12R150U0125-04LX
with

7.00
4
ERC12R150U0150-04LX
1.50
5.00
1.50
with
ERC16R150U0125-02LL  2 1.50 1.25 10.00 2.00 with

ERC16R150U150-02LL  2 1.50 1.50 10.00 2.00 with RCMT1606*N-***
ERC16R150U0150-02LX  2 1.50 1.50 5.00 7.00 with
Note: Standard length cutters come with weldon shanks, all others are cylindrical.
 :Stocked item
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
