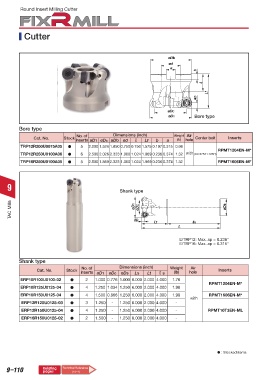

Page 696 - Tungaloy Catalog

Round Insert Milling Cutter

Cutter

øDb
ød
a
b

R

Lf
ap

øDc
øD1 Bore type

Bore type
No. of Dimensions (inch) Weight Air
Cat. No. Stock inserts øD1 øDc øDb ød r Lf b a (Ib) hole Center bolt Inserts
TRP12R200U0075A05  5 2.000 1.526 1.850 0.750 0.750 1.575 0.197 0.315 0.66 RPMT1204EN-M*
TRP12R250U0100A06  6 2.500 2.026 2.323 1.000 1.024 1.969 0.236 0.374 1.32 with (C0.375X1.125H)
TRP16R250U0100A05  5 2.500 1.869 2.323 1.000 1.024 1.969 0.236 0.374 1.32 RPMT1606EN-M*

9 Shank type

TAC Mills øD1 øDc øDs

ap
Lf Rs
L

E/TRP12: Max. ap = 0.236"
E/TRP16: Max. ap = 0.315"

Shank type
Air
No. of
Cat. No. Stock inserts øD1 øDc Dimensions (inch) rs Weight hole Inserts
(Ib)
Ls
øDs
Lf
ERP10R100U0100-02  2 1.000 0.776 1.000 6.000 2.000 4.000 1.76
RPMT1204EN-M*
ERP10R125U0125-04  4 1.250 1.034 1.250 6.000 2.000 4.000 1.98
ERP10R150U0125-04  4 1.500 0.866 1.250 6.000 2.000 4.000 1.98 RPMT1606EN-M*
with
ERP12R125U0125-03  3 1.250 - 1.250 6.000 2.000 4.000 -
ERP12R150U0125-04  4 1.250 - 1.250 6.000 2.000 4.000 - RPMT10T3EN-ML
ERP16R150U0125-02  2 1.500 - 1.250 6.000 2.000 4.000 -

 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
