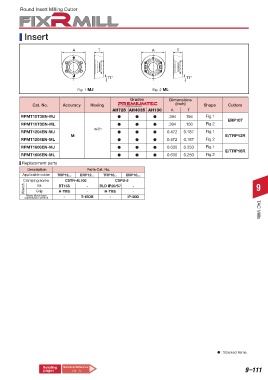

Page 697 - Tungaloy Catalog

Round Insert Milling Cutter

Insert

A T A T

11° 11°

Fig. 1 MJ Fig. 2 ML

Grades Dimensions
Cat. No. Accuracy Honing TUNGAL O Y (inch) Shape Cutters
AH725 AH4035 AH130 A T
RPMT10T3EN-MJ    .394 .156 Fig.1
ERP10T
RPMT10T3EN-ML    .394 .156 Fig.2
with
RPMT1204EN-MJ    0.472 0.187 Fig.1
M E/TRP12R
RPMT1204EN-ML    0.472 0.187 Fig.2
RPMT1606EN-MJ    0.630 0.250 Fig.1
E/TRP16R
RPMT1606EN-ML    0.630 0.250 Fig.2
Replacement parts

Description Parts Cat. No.
Applicable cutter TRP12... ERP12... TRP16... ERP16...
Clamping screw CSTR-4L100 CSPB-5
Wrench Grip H-TBS - H-TBS -
Bit BT15S - BLD IP20/S7 - 9
Mono block type
substitution wrench - T-15DB - IP-20D TAC Mills

 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
Relating Technical Reference
pages (14-1) 9–111
