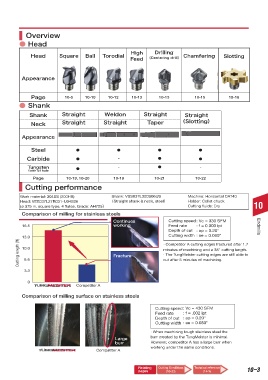

Page 788 - Tungaloy Catalog

Overview

● Head
High Drilling
Head Square Ball Torodial Chamfering Slotting
Feed （Centering drill）

Appearance

Page 10-5 10-10 10-12 10-13 10-13 10-15 10-16

● Shank
Shank Straight Weldon Straight Straight

Neck Straight Straight Taper （Slotting）

Appearance

Steel ● ● ● ●

Carbide ● - ● ●
Tungsten ● - ● -
（with oil hole
Page 10-19, 10-20 10-19 10-21 10-22
Cutting performance

Work material: 304SS (200HB) Shank: VSS037L300S06US Machine: Horizontal CAT40
Head: VEE037L27R031-U04S06 （Straight shank & neck, steel） Holder: Collet chuck
(ø.375 in, square type, 4 flutes, Grade: AH725） Cutting fluids: Dry 10
Comparison of milling for stainless steels
Continues Cutting speed : Vc = 330 SFM
16.5 working Feed rate : f = 0.003 ipt Endmills
Depth of cut : ap = 0.20"
• Steel: For general purpose 13.0 Cutting width : ae = 0.060"
• Carbide: For highly accurate machining with
Cutting length (ft) 6.6 Fracture · The TungMeister cutting edges are still able to
excellent rigidity · Competitor A cutting edges fractured after 1.7
• Tungsten: Reduced chattering due to vibration 10.0
dampening capacity minutes of machining and a 38" cutting length.
cut after 5 minutes of machining.

3.3

0
Competitor A
Straight shank & neck (carbide)
Comparison of milling surface on stainless steels

Cutting speed: Vc = 430 SFM
Feed rate : f = .002 ipt
Depth of cut : ap = 0.20"
Cutting width : ae = 0.080"

· When machining tough stainless steel the
Large burr created by the TungMeister is minimal.
burr However, competitor A has a large burr when
working under the same conditions.
Competitor A

Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
Relating Cutting Conditions Technical reference 10–3
