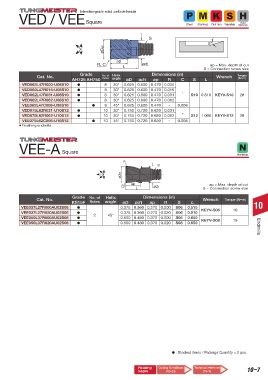

Page 792 - Tungaloy Catalog

Interchangable solid carbide heads
VED / VEE Square Steel Stainless Cast Iron Superalloys Materials
Hard

S
5°
øDe8

a p
R, C L ød1 ap = Max. depth of cut
S = Connection screw size
Grade Dimensions (in)
Cat. No. No. of Helix Wrench Torque
(N•m)
flutes
AH725 AH750 angle øD ød1 ap R C S L
VED062L47R000-U08S10 ● 8 30° 0.625 0.600 0.470 0.000
VED062L47R015-U08S10 ● 8 30° 0.625 0.600 0.470 0.015
VED062L47R031-U08S10 ● 8 30° 0.625 0.600 0.470 0.031 - S10 0.810 KEYV-S10 28
VED062L47R062-U08S10 ● 8 30° 0.625 0.600 0.470 0.062
VEE062L47C008-U08S10 ● 8 45° 0.625 0.600 0.470 - 0.008
VED075L62R031-U10S12 ● 10 30° 0.750 0.720 0.620 0.031
VED075L62R062-U10S12 ● 10 30° 0.750 0.720 0.620 0.062 - S12 1.000 KEYV-S12 28
VEE075L62C008-U10S12 ● 10 45° 0.750 0.720 0.620 - 0.008
● Finishing endmills

VEE-A Square Non-ferrous

R
S

øDh6
a p
R ød1 ap = Max. depth of cut
L S = Connection screw size
Grade No. of Helix Dimensions (in)
Cat. No. Wrench Torque (N•m)
KS15F flutes angle øD ød1 ap R S L
VEE037L27R000AU02S06 ● 0.375 0.360 0.270 0.000 S06 0.510 KEYV-S06 10
VEE037L27R020AU02S06 ● 0.375 0.360 0.270 0.020 S06 0.510 10
VEE050L37R000AU02S08 ● 2 45° 0.500 0.480 0.370 0.000 S08 0.650 KEYV-S08
VEE050L37R020AU02S08 ● 0.500 0.480 0.370 0.020 S08 0.650 15 Endmills

R
S
øDh6

a p
L ød1

d : Stocked items / Package Quantity = 2 pcs.

C Relating Cutting Conditions Technical reference 10–7
pages S (10-23) (14-1)
α
øDe9

a p
L ød1
