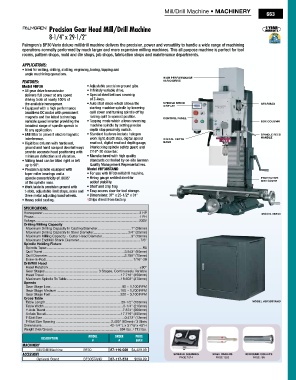

Precision Gear Head Mill/Drill Machine
8-1/4" x 29-1/2"

Palmgren's BF30 Vario deluxe mill/drill machine delivers the precision, power and versatility to handle a wide range of machining
operations normally performed by much larger and more expensive milling machines. This all purpose machine is perfect for tool
rooms, pattern shops, mold and die shops, job shops, fabrication shops and maintenance departments.

APPLICATIONS:
• Ideal for milling, drilling, slotting, engraving, boring, tapping and
angle machining operations.
HIGH PERFORMANCE
FeATureS: VARIO DRIVE
Model #BF30 • Adjustable precision ground gibs.
• All gear drive transmission • Infinitely variable drive.
delivers full power at any speed • Special steel bellows covering
driving tools at nearly 100% of of Z-Axes.
the available horsepower. • Auto start mode which allows the SPINDLE SPEED GEAR BOX
DISPLAY
• Equipped with a high performance starting machine spindle by lowering
brushless DC motor with permanent quill down and turning spindle off by
magnets and the latest technology raising quill to upmost position. CONTROL PANEL
variable speed inverter providing the • Tapping mode which allows reversing BOX COLUMN
broadest range of spindle speeds to machine spindle by setting precise
fit any application. depth stop proximity switch.
• EMI filter to prevent electromagnetic • Standard features include halogen SPINDLE FEED
interference. work light, depth stop, digital speed DIGITAL DEPTH HANDLE
• Rigid box column with hardened, read out, digital read out depth gauge, GAGE
ground and hand scraped dovetail ways interlocking spindle safety guard and
provide accurate head positioning with 7/16"-20 draw bar.
minimum deflection and vibration. • Manufactured with high quality
• Milling head can be tilted right or left standards controlled by on-site German
up to 90°. Quality Management Representatives.
• Precision spindle equipped with Model #BF30STAND
taper roller bearings and a • For use with BF30 mill/drill machine.
spindle concentricity of .0005" • Heavy gauge welded steel for PROTECTIVE
at the spindle nose. added stability. WAY COVER
• Work table is precision ground with • Shelf and chip tray.
t-slots, adjustable limit stops, scale and • Easy access door for tool storage.
three metal adjusting hand wheels. • Dimensions: 37" x 25-1/2" x 31"
• Heavy solid casting. †Ships direct from factory.
SPecificationS:
Horsepower ...................................................................................................... 3 HP ModEl #BF30
Phase ................................................................................................................ 1 PH
Voltage ..............................................................................................................230V
drilling/Milling Capacity
Maximum Drilling Capacity In Casting Diameter ....................................1" (28mm)
Maximum Drilling Capacity In Steel Diameter .................................... 3/4" (25mm)
Maximum Milling Capacity - Cutter Head Diameter...............................3" (75mm)
Maximum End Mill Shank Diameter ................................................................ 7/8"
Spindle Holding Fixture
Spindle Taper ......................................................................................................R8
Quill Travel .......................................................................................3.543" (90mm)
Quill Diameter ..................................................................................2.756" (70mm)
Draw-In-Rod .............................................................................................7/16"-20
drill/Mill Head
Head Rotation ................................................................................................ ±90°
Gear Stages ......................................................... 3 Stages, Continuously Variable
Head Travel ..................................................................................17.716" (450mm)
Maximum Spindle To Table .........................................................18.503" (470mm)
Speeds
Gear Stage Low ............................................................................80 ~ 1,100 RPM
Gear Stage Medium ...................................................................160 ~ 1,700 RPM
Gear Stage Fast .........................................................................320 ~ 3,100 RPM
Cross Table
Table Length ................................................................................29-1/2" (750mm) ModEl #BF30STANd
Table Width ....................................................................................8-1/4" (210mm)
Y-Axis Travel ..................................................................................7.874" (200mm)
X-Axis Travel ................................................................................17.716" (450mm)
T-Slot Size .......................................................................................0.472" (12mm)
T-Slot Size Spacing .......................................................... 2.480" (63mm) / 3 Slots
Dimensions ........................................................................ 42-1/4"L x 31"W x 49"H
Weight (Net/Gross) ...................................................................... 594 lbs. / 712 lbs.
MoDel orDer Price
DeScriPtion
# # eacH
MacHinery
Mill/Drill Machine BF30 87-116-029 $4,429.99
acceSSory SpINdlE SquARES EdGE FINdERS R8 RouNd CollETS
Optional Stand BF30STAND 87-117-573 $699.99 PAGE 1014 PAGE 1020 PAGE 786
