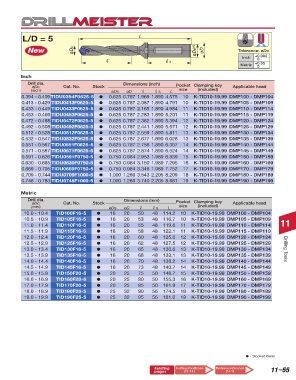

Page 871 - Tungaloy Catalog
P. 871
L/D = 5
+ 0.05
New øDc 0 øDs h6 øD Tolerance: øDc
Inch +0.002
R Rs 0
Metric +0.05
0
Inch
Drill dia. Dimensions (inch)
øDc Cat. No. Stock Pocket Clamping key Applicable head
(inch) øDs øD r rs L size (included)
0.394 - 0.409TIDU0394F0625-5 0.625 0.787 1.969 1.890 4.575 10 K-TID10-19.99 DMP100 - DMP104
0.413 - 0.429 TIDU0413F0625-5 0.625 0.787 2.087 1.890 4.791 10 K-TID10-19.99 DMP105 - DMP109
0.433 - 0.449 TIDU0433F0625-5 0.625 0.787 2.165 1.890 4.984 11 K-TID10-19.99 DMP110 - DMP114
0.453 - 0.469 TIDU0453F0625-5 0.625 0.787 2.283 1.890 5.201 11 K-TID10-19.99 DMP115 - DMP119
0.472 - 0.488 TIDU0472F0625-5 0.625 0.787 2.362 1.890 5.394 12 K-TID10-19.99 DMP120 - DMP124
0.492 - 0.508 TIDU0492F0625-5 0.625 0.787 2.441 1.890 5.571 12 K-TID10-19.99 DMP125 - DMP129
0.512 - 0.528 TIDU0512F0625-5 0.625 0.787 2.559 1.890 5.811 13 K-TID10-19.99 DMP130 - DMP134
0.532 - 0.547 TIDU0532F0625-5 0.625 0.787 2.677 1.890 6.028 13 K-TID10-19.99 DMP135 - DMP139
0.551 - 0.567 TIDU0551F0625-5 0.625 0.787 2.756 1.890 6.307 14 K-TID10-19.99 DMP140 - DMP144
0.571 - 0.587 TIDU0571F0625-5 0.625 0.787 2.874 1.890 6.524 14 K-TID10-19.99 DMP145 - DMP149
0.591 - 0.626 TIDU0591F0750-5 0.750 0.984 2.953 1.969 6.839 15 K-TID10-19.99 DMP150 - DMP159
0.630 - 0.665 TIDU0630F0750-5 0.750 0.984 3.150 1.969 7.295 16 K-TID10-19.99 DMP160 - DMP169
0.669 - 0.705 TIDU0669F0750-5 0.750 0.984 3.346 1.969 7.752 17 K-TID10-19.99 DMP170 - DMP179
0.709 - 0.744 TIDU0709F1000-5 1.000 1.260 3.543 2.205 8.209 18 K-TID10-19.99 DMP180 - DMP189
0.748 - 0.783 TIDU0748F1000-5 1.000 1.260 3.740 2.205 8.661 19 K-TID10-19.99 DMP190 - DMP199
Metric
Drill dia. Dimensions (mm)
øDc Cat. No. Stock Pocket Clamping key Applicable head
(mm) øDs øD r rs L size (included)
10.0 - 10.4 TID100F16-5 16 20 50 48 114.2 10 K-TID10-19.99 DMP100 - DMP104
10.5 - 10.9 TID105F16-5 16 20 53 48 116.7 10 K-TID10-19.99 DMP105 - DMP109
11.0 - 11.4 TID110F16-5 16 20 55 48 119.6 11 K-TID10-19.99 DMP110 - DMP114 11
11.5 - 11.9 TID115F16-5 16 20 58 48 122.1 11 K-TID10-19.99 DMP115 - DMP119
12.0 - 12.4 TID120F16-5 16 20 60 48 125.0 12 K-TID10-19.99 DMP120 - DMP124
12.5 - 12.9 TID125F16-5 16 20 62 48 127.5 12 K-TID10-19.99 DMP125 - DMP129
13.0 - 13.4 TID130F16-5 16 20 65 48 130.6 13 K-TID10-19.99 DMP130 - DMP134 Drilling Tools
13.5 - 13.9 TID135F16-5 16 20 68 48 133.1 13 K-TID10-19.99 DMP135 - DMP139
14.0 - 14.4 TID140F16-5 16 20 70 48 138.2 14 K-TID10-19.99 DMP140 - DMP144
14.5 - 14.9 TID145F16-5 16 20 73 48 140.7 14 K-TID10-19.99 DMP145 - DMP149
15.0 - 15.9 TID150F20-5 20 25 75 50 148.7 15 K-TID10-19.99 DMP150 - DMP159
16.0 - 16.9 TID160F20-5 20 25 80 50 155.3 16 K-TID10-19.99 DMP160 - DMP169
17.0 - 17.9 TID170F20-5 20 25 85 50 161.9 17 K-TID10-19.99 DMP170 - DMP179
18.0 - 18.9 TID180F25-5 25 32 90 56 174.5 18 K-TID10-19.99 DMP180 - DMP189
19.0 - 19.9 TID190F25-5 25 32 95 56 181.0 19 K-TID10-19.99 DMP190 - DMP199
