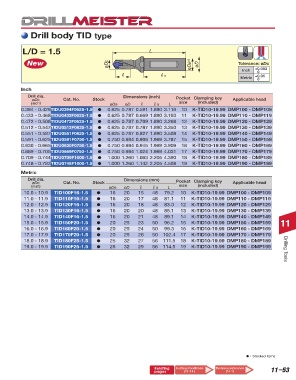

Page 869 - Tungaloy Catalog

Drill body TID type

L/D = 1.5
+ 0.05
New øDc 0 øDs h6 øD Tolerance: øDc

0
R Rs Inch +0.002
+0.05
Metric
0
Inch
Drill dia. Dimensions (inch)
øDc Cat. No. Stock Pocket Clamping key Applicable head
(inch) øDs øD r rs L size (included)
0.394 - 0.429TIDU0394F0625-1.5  0.625 0.787 0.591 1.890 3.118 10 K-TID10-19.99 DMP100 - DMP109
0.433 - 0.468TIDU0433F0625-1.5  0.625 0.787 0.669 1.890 3.193 11 K-TID10-19.99 DMP110 - DMP119
0.472 - 0.508TIDU0472F0625-1.5  0.625 0.787 0.709 1.890 3.268 12 K-TID10-19.99 DMP120 - DMP129
0.512 - 0.547TIDU0512F0625-1.5  0.625 0.787 0.787 1.890 3.350 13 K-TID10-19.99 DMP130 - DMP139
0.551 - 0.587TIDU0551F0625-1.5  0.625 0.787 0.827 1.890 3.508 14 K-TID10-19.99 DMP140 - DMP149
0.591 - 0.625TIDU0591F0750-1.5  0.750 0.984 0.906 1.969 3.787 15 K-TID10-19.99 DMP150 - DMP159
0.630 - 0.665TIDU0630F0750-1.5  0.750 0.984 0.945 1.969 3.909 16 K-TID10-19.99 DMP160 - DMP169
0.669 - 0.705TIDU0669F0750-1.5  0.750 0.984 1.024 1.969 4.031 17 K-TID10-19.99 DMP170 - DMP179
0.709 - 0.744TIDU0709F1000-1.5  1.000 1.260 1.063 2.205 4.390 18 K-TID10-19.99 DMP180 - DMP189
0.748 - 0.783TIDU0748F1000-1.5  1.000 1.260 1.142 2.205 4.508 19 K-TID10-19.99 DMP190 - DMP199

Metric
Drill dia. Dimensions (mm)
øDc Cat. No. Stock Pocket Clamping key Applicable head
(mm) øDs øD r rs L size (included)
10.0 - 10.9 TID100F16-1.5  16 20 15 48 79.2 10 K-TID10-19.99 DMP100 - DMP109
11.0 - 11.9 TID110F16-1.5  16 20 17 48 81.1 11 K-TID10-19.99 DMP110 - DMP119
12.0 - 12.9 TID120F16-1.5  16 20 18 48 83.0 12 K-TID10-19.99 DMP120 - DMP129
13.0 - 13.9 TID130F16-1.5  16 20 20 48 85.1 13 K-TID10-19.99 DMP130 - DMP139
14.0 - 14.9 TID140F16-1.5  16 20 21 48 89.1 14 K-TID10-19.99 DMP140 - DMP149
15.0 - 15.9 TID150F20-1.5  20 25 23 50 96.2 15 K-TID10-19.99 DMP150 - DMP159 11
16.0 - 16.9 TID160F20-1.5  20 25 24 50 99.3 16 K-TID10-19.99 DMP160 - DMP169
17.0 - 17.9 TID170F20-1.5  20 25 26 50 102.4 17 K-TID10-19.99 DMP170 - DMP179
18.0 - 18.9 TID180F25-1.5  25 32 27 56 111.5 18 K-TID10-19.99 DMP180 - DMP189
19.0 - 19.9 TID190F25-1.5  25 32 29 56 114.5 19 K-TID10-19.99 DMP190 - DMP199 Drilling Tools

●：Stocked items

Relating Cutting Conditions Technical reference 11–53
pages (11-14 ) (14-1)
