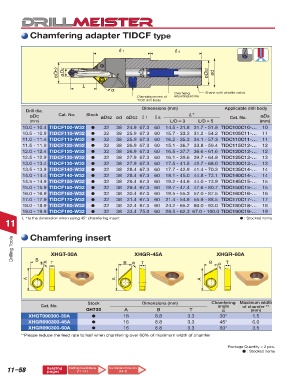

Page 874 - Tungaloy Catalog

Chamfering adapter TIDCF type

L
α
Overhang Shank with whistle notch
Clamping screw of adjusting screw
TIDC drill body
Dimensions (mm) Applicable drill body
Drill dia.
øDc Cat. No. Stock øDs2 ød øDc2 r1 rs L* Cat. No. øDs
(mm) L/D = 3 L/D = 5 (mm)
10.0 - 10.4 TIDCF100-W32  32 38 24.9 67.3 60 14.5 - 31.8 31.7 - 51.8 TIDC100C10-… 10
10.5 - 10.9 TIDCF110-W32  32 38 25.9 67.3 60 15.7 - 33.3 31.2 - 54.2 TIDC105C11-… 11
11.0 - 11.4 TIDCF110-W32  32 38 25.9 67.3 60 16.2 - 35.3 34.1 - 57.3 TIDC110C11-… 11
11.5 - 11.9 TIDCF120-W32  32 38 26.9 67.3 60 15.1 - 36.7 33.8 - 59.4 TIDC115C12-… 12
12.0 - 12.4 TIDCF120-W32  32 38 26.9 67.3 60 16.5 - 37.7 36.6 - 61.6 TIDC120C12-… 12
12.5 - 12.9 TIDCF130-W32  32 38 27.9 67.3 60 16.1 - 39.6 39.7 - 64.8 TIDC125C13-… 13
13.0 - 13.4 TIDCF130-W32  32 38 27.9 67.3 60 17.5 - 41.5 42.7 - 68.0 TIDC130C13-… 13
13.5 - 13.9 TIDCF140-W32  32 38 28.4 67.3 60 17.7 - 42.9 41.4 - 70.3 TIDC135C14-… 14
14.0 - 14.4 TIDCF140-W32  32 38 28.4 67.3 60 18.1 - 45.0 44.8 - 73.1 TIDC140C14-… 14
14.5 - 14.9 TIDCF150-W32  32 38 29.4 67.3 60 19.2 - 44.6 44.0 - 73.9 TIDC145C15-… 15
15.0 - 15.9 TIDCF150-W32  32 38 29.4 67.3 60 19.7 - 47.4 47.6 - 80.7 TIDC150C15-… 15
16.0 - 16.9 TIDCF160-W32  32 38 30.4 67.3 60 19.5 - 55.3 57.0 - 87.5 TIDC160C16-… 16
17.0 - 17.9 TIDCF170-W32  32 38 31.4 67.3 60 21.4 - 54.9 55.9 - 88.5 TIDC170C17-… 17
18.0 - 18.9 TIDCF180-W32  32 38 32.4 67.3 60 24.2 - 65.2 60.0 - 93.0 TIDC180C18-… 18
19.0 - 19.9 TIDCF190-W32  32 38 33.4 75.0 60 28.5 - 62.3 67.0 - 100.0 TIDC190C19-… 19
11 L * is the dimension when using 45° chamfering insert  : Stocked items

Drilling Tools Chamfering insert B α XHGR-45A B XHGR-60A

XHGT-30A
B
T
T
T
α
α
A A A

Stock Dimensions (mm) Chamfering Maximum width
Cat. No. angle of chamfer **
GH730 A B T α (mm)
XHGT090300-30A  16 8.8 3.3 30° 1.5
XHGR090300-45A  16 8.8 3.3 45° 6.0
XHGR090300-60A  16 8.8 3.3 60° 3.5
**Please reduce the feed rate to half when chamfering over 60% of maximum width of chamfer

Package Quantity = 2 pcs.
 : Stocked items

11–58 Relating Cutting Conditions Technical reference
pages
(14-1)
(11-14 )
