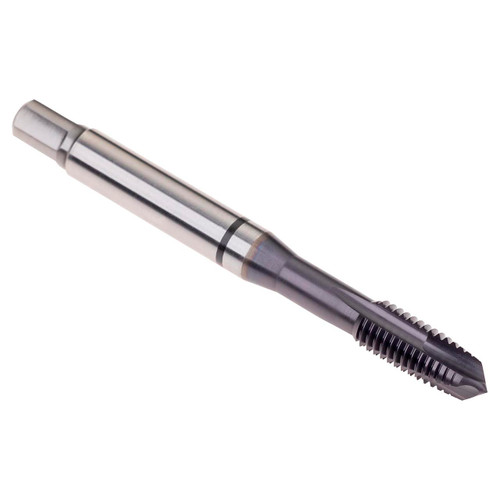

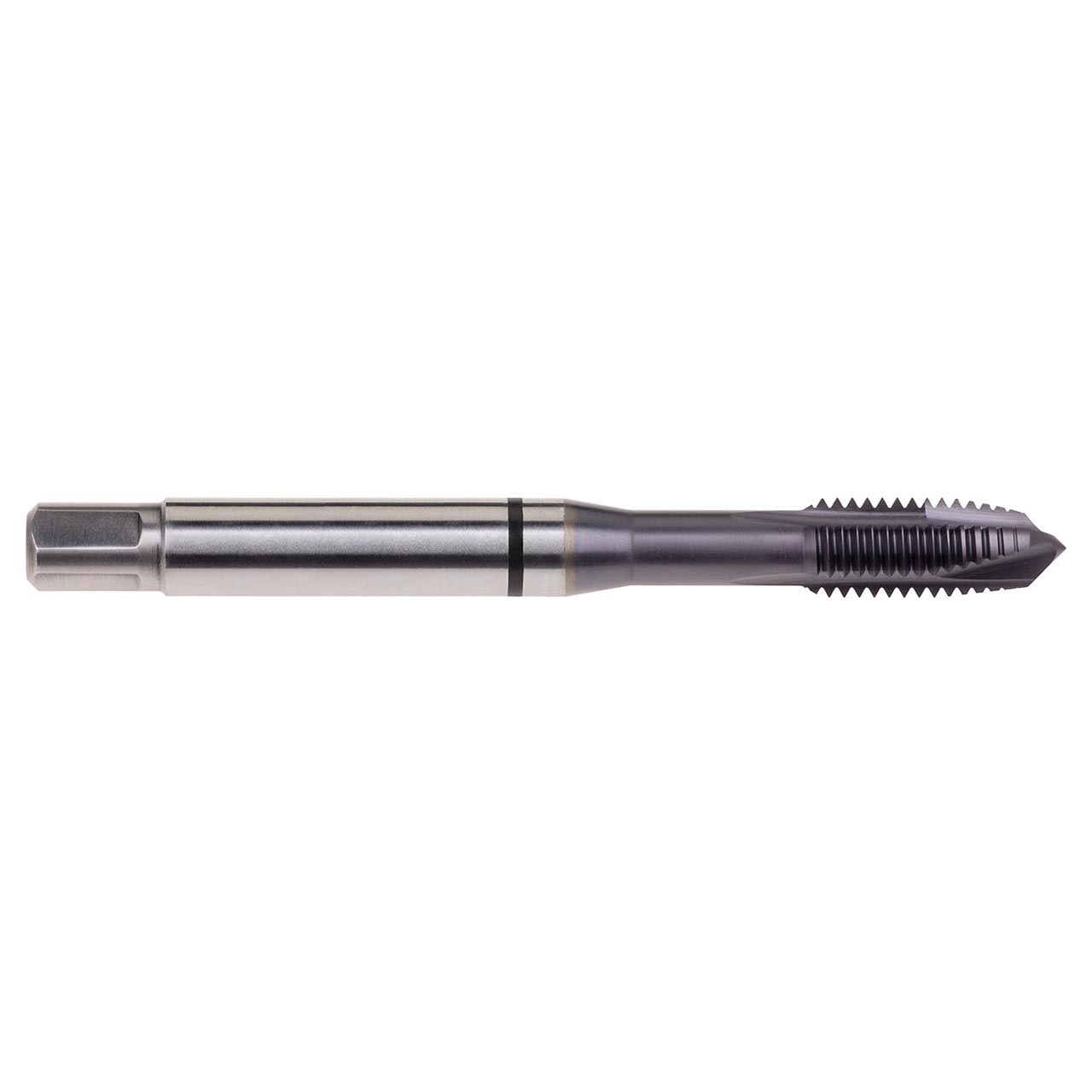

Designed for high performance through hole tapping in high strength and heat resistant workmaterials with hardness up to 45HRC. The TiAlN-Top coating combined with geometry that significantly increases cutting edge strength, provides excellent performance and consistency in hard and difficult to machine materials..
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 3.5433" |
| Clamping Width (mm) | 6.2mm |
| No of Flutes | 3 |
| Usable Length (mm) | 24mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 9 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 24mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
