Features

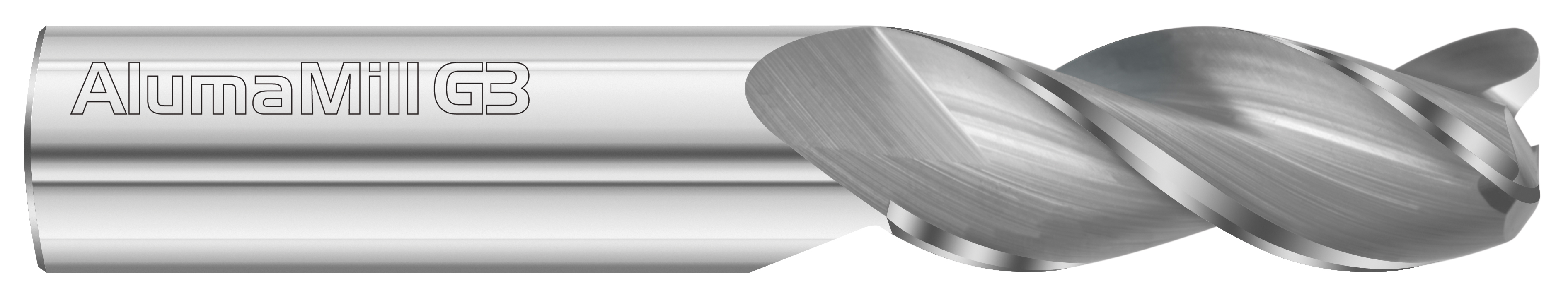

- The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
- It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
- Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
- The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating
Product Specifications
| Mill Diameter (Inch) | 1" |
| Cutting Flute Length (Inch) | 1-3/4" |
| Shank Diameter (Inch) | 1" |
| Overall Length (Inch) | 4" |
| Mill Diameter (Decimal Inch) | 1" |
| Cutting Flute Length (Decimal Inch) | 1.7500" |
| Shank Diameter (Decimal Inch) | 1" |
| Overall Length (Decimal Inch) | 4" |
| Mill Diameter (mm) | 25.40mm |
| Cutting Flute Length (mm) | 44.45mm |
| Shank Diameter (mm) | 25.40mm |
| Overall Length (mm) | 101.60mm |
| Radius (mm) | 1.52mm |
| Finish/Coating | Uncoated |
| Number of Flutes | 3 |
| Helix Angle | 37.5 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1"
Mill Diameter (mm):
25.40mm
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-3/4"
Length of Cut (Decimal Inch):
1.7500"
Length of Cut (mm):
44.45mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1"
Shank Diameter (mm):
25.40mm
Application:
Aluminum & Non-Ferrous Materials
Single or Double End:
Single
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
