Features

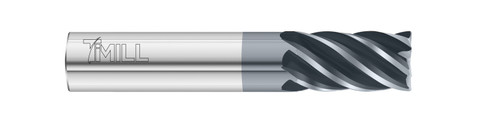

- The 3116 TiMill is a 6-flute, high performance end mill designed to excel in difficult to machine materials like titanium
- Its increased core increases strength and stability in-cut, as well produces improved surface finishes, higher quality parts, and stable cutting permitting more aggressive feeds and speeds
- The 3116 TiMill is stocked with FC-13 coating
Product Specifications
| Mill Diameter (Inch) | 3/4" |
| Cutting Flute Length (Inch) | 1-5/8" |
| Shank Diameter (Inch) | 3/4" |
| Overall Length (Inch) | 4" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Cutting Flute Length (Decimal Inch) | 1.6250" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Overall Length (Decimal Inch) | 4" |
| Mill Diameter (mm) | 19.05mm |
| Cutting Flute Length (mm) | 41.28mm |
| Shank Diameter (mm) | 19.05mm |
| Overall Length (mm) | 101.60mm |
| Radius (mm) | 3.05mm |
| Finish/Coating | FC13 |
| Number of Flutes | 6 |
| Helix Angle | 38 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
6
End Type:
Corner Radius
Corner Radius (mm):
3.05mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Material:
Solid Carbide
Finish/Coating:
FC13
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Application:
Titanium
Single or Double End:
Single
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Series:
3116 TiMill
Ships:
From Partner Facility
