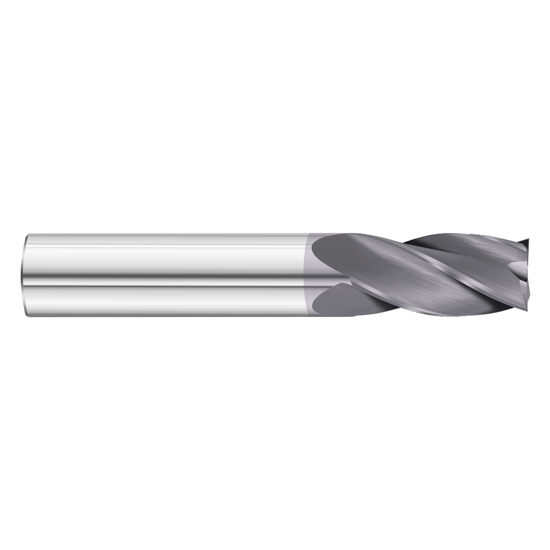

Fullerton Tool 30629 | 13/32" Diameter x 7/16" Shank x 1" LOC x 2-3/4" OAL 4 Flute TiAlN Solid Carbide Square End Mill

$72.75 $45.83
(You save $26.92)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
13/32"
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1"
Length of Cut (mm):
25.40mm
Shank Diameter (inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003294
UPC:
Weight:
0.16 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 30629 | 13/32" Diameter x 7/16" Shank x 1" LOC x 2-3/4" OAL 4 Flute TiAlN Solid Carbide Square End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.4062"
Cutting Diameter (mm) 10.32mm
Cutting Diameter (Inch) 13/32"
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.4375"
Shank Diameter (mm) 11.11mm
Shank Diameter (Inch) 7/16"
Overall Length (Decimal Inch) 2.7500"
Overall Length (mm) 69.85mm
Overall Length (Inch) 2-3/4"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
