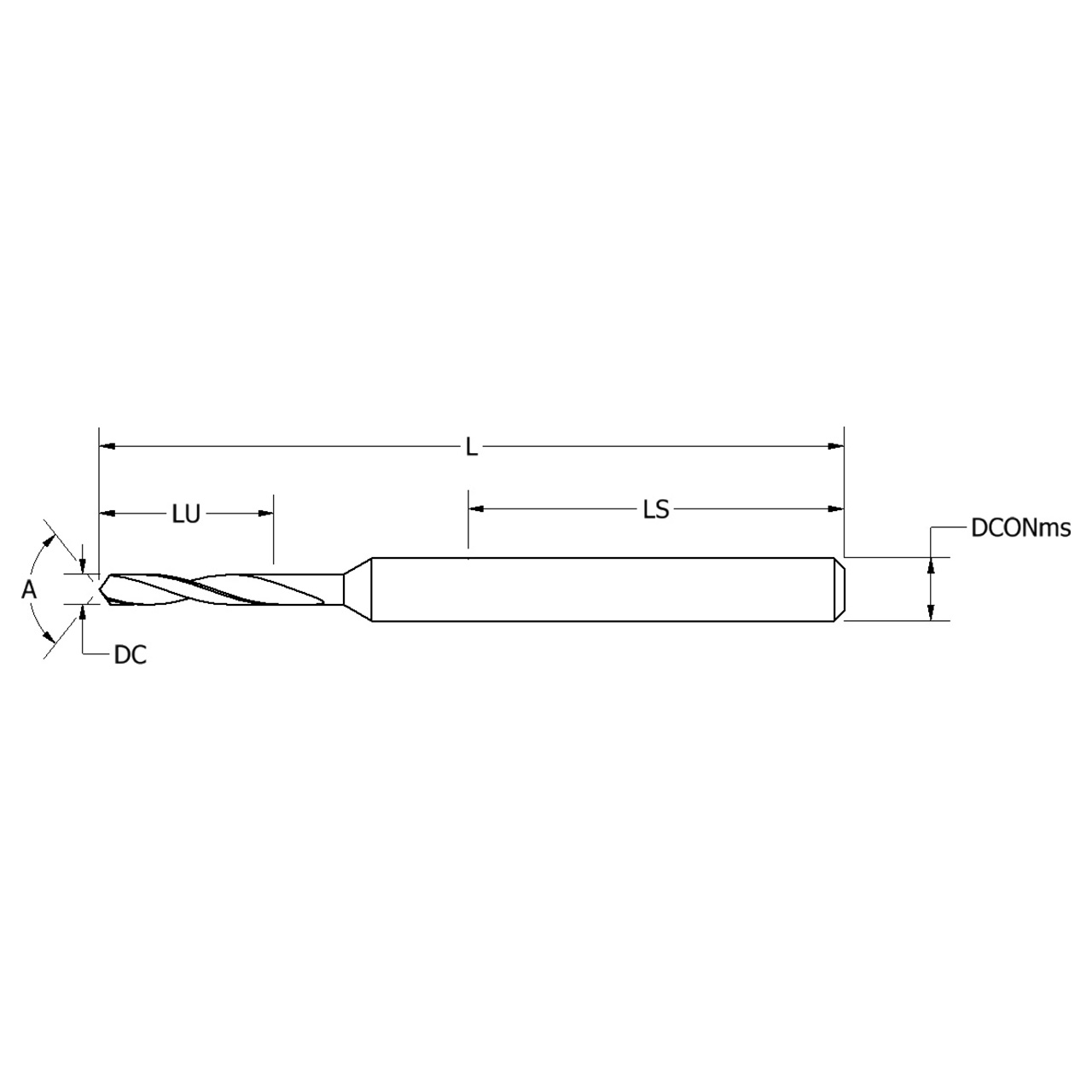

Product Specifications
| Manufacturer Part Number | 925-000-002 |
| Cutting Diameter (Decimal Inch) | 0.005" |
| Connection Diameter (Decimal Inch) | 0.125" |
| Overall Length (Decimal Inch) | 1.500" |
| Length of Shank (Decimal Inch) | 0.750" |
| Usable Length (Decimal Inch) | 0.070" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Connection Type | Shank |
| Product Type | Circuit Board Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Diameter (Decimal Inch):
0.0050"
Diameter (mm):
0.13mm
Material:
Carbide
interval quantity:
1
