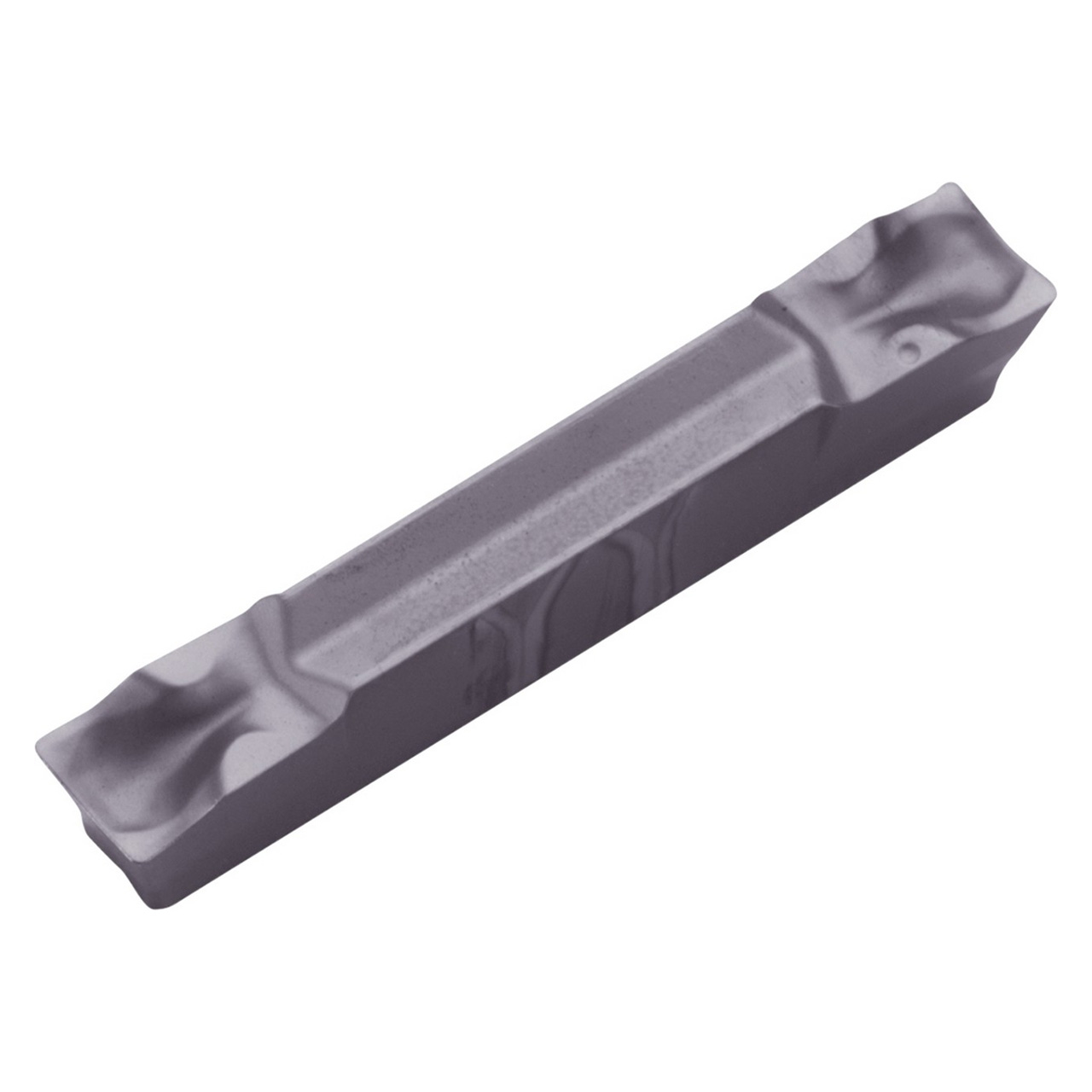

Features:
- Insert for cut-off, deep grooving
- Cut-Off/high feed/2-edge/Lead Angle
- 2 Cutting edges
- Hard TiAlN base PVD coated super micro-grain carbide
- Application: Superior anti-oxidation performance with well balanced wear resistance and toughness
Product Specifications
Tool Number | TJY13326 |
Max Depth of Cut (Decimal Inch) | 0.6693" |
Max Depth of Cut (mm) | 17.00mm |
Cutting Width (Decimal Inch) | 0.0984" |
Cutting Width (mm) | 2.50mm |
Cutting Width Minimum (Decimal Inch) | 0.0984" |
Cutting Width Minimum (mm) | 2.50mm |
Cutting Width Maximum (Decimal Inch) | 0.0984" |
Cutting Width Maximum (mm) | 2.50mm |
Insert Length (Decimal Inch) | 0.7874" |
Insert Length (mm) | 20.00mm |
Corner Radius (Inch) | 0.008" |
Corner Radius (mm) | 0.20mm |
Thickness (Inch) | 0.169" |
Thickness (mm) | 4.30mm |
Application | Cut-Off | External Deep Grooving | External Grooving |
Chipbreaker | TMR |
Coating Process | PVD |
Cutting Range | Finishing Medium |
Hand | Right Hand |
Insert Holding Method | Clamp |
Insert Grade | PR1115 |
Insert Size | 2520 |
Material | Carbide |
Number of Cutting Edges | 2 |
Primary Workpiece Material | Steel (P) |
Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMM
Insert Size:
2520
Material:
Carbide;Cutting Width (Decimal Inch)=0.0984"""
Cutting Width (mm):
2.50mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
PR1115
Finish/Coating:
PVD
