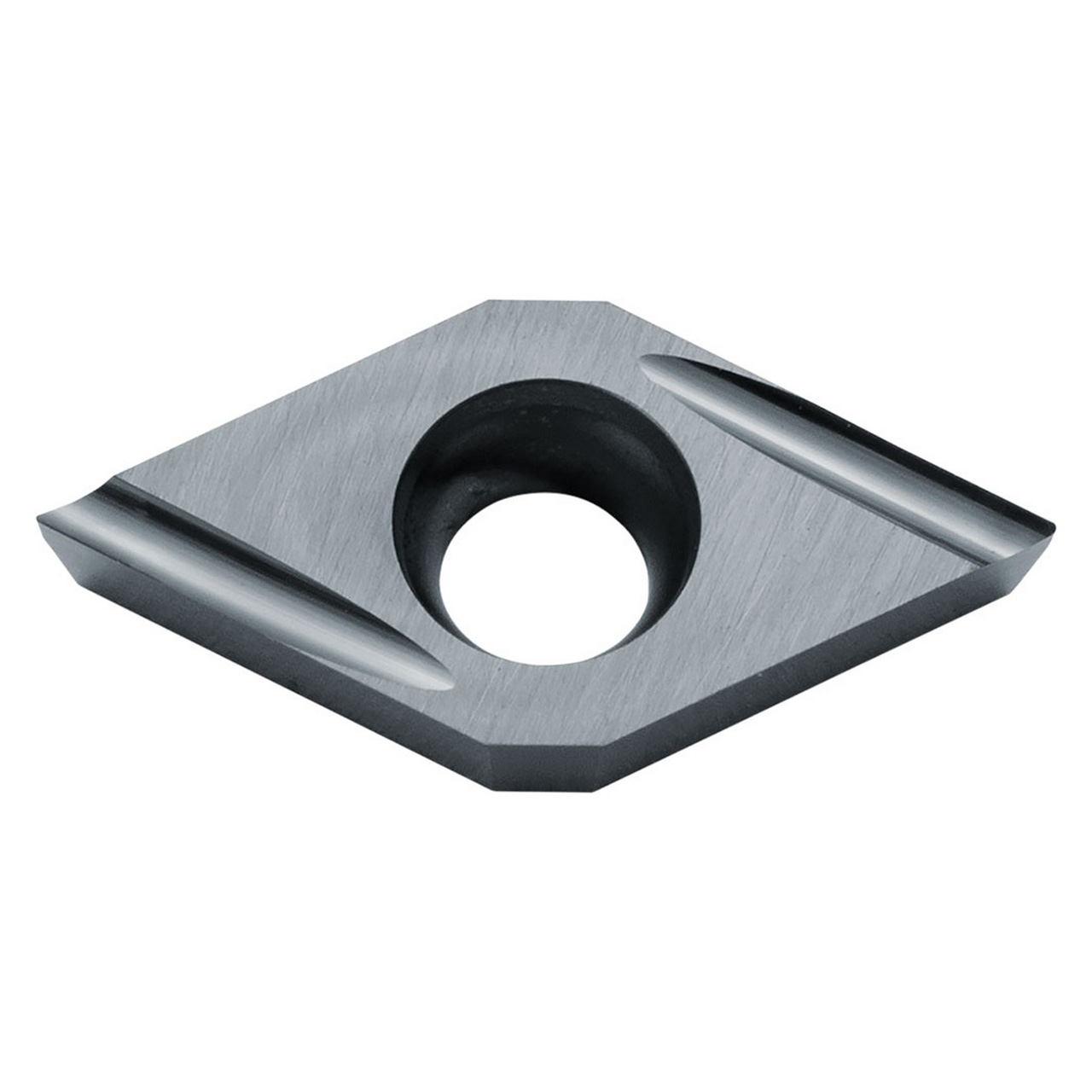

Features:
- Insert for external turning, copying, back boring, sub-spindle
- Sharp edge with 2 cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| EDP Number | TWE00222 |
| Inscribed Circle (Inch) | 1/4" |
| Inscribed Circle (mm) | 6.35mm |
| Corner Radius (Inch) | 0.001" |
| Corner Radius (mm) | 0.03mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Application | Back Boring | Copying | External Turning | Sub-Spindle |
| Chipbreaker | U |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 21501 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
DCGT
Insert Size:
21501
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0010"
Corner Radius (mm):
0.03mm
Manufacturer's Grade:
KW10
