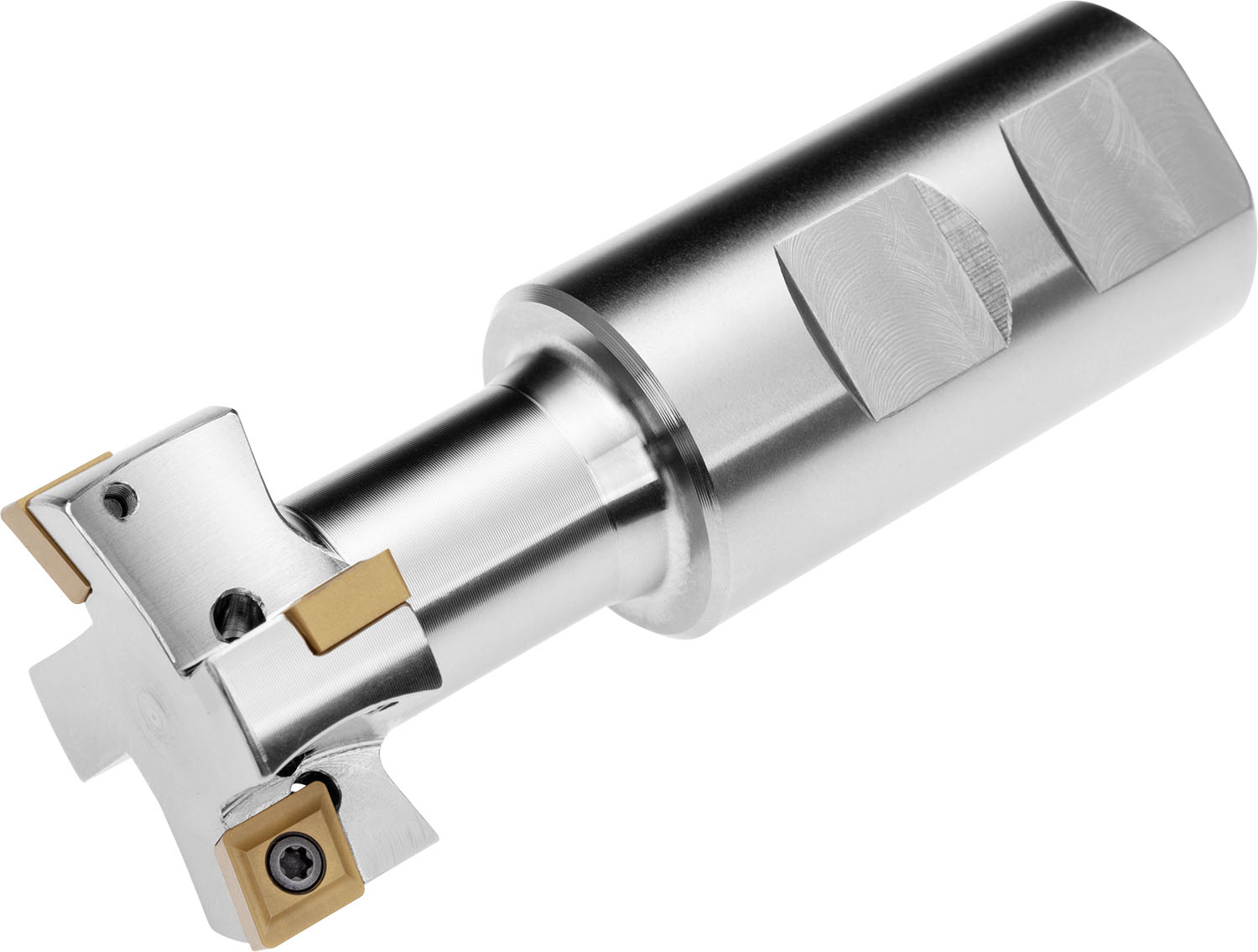

T-slot mill which utilises 2 off CCMX 060304 single-sided inserts, cutting diameter 25 mm with 90° approach angle and 25 mm Weldon shank according to DIN 1835B, 86 mm overall length, through coolant for T-Slot milling and rear face milling with a maximum depth of cut of 11 mm.
Product Specifications
| EDP Number | 6758317 |
| Face Effective Cutting Edge Count | 1 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Cutting width (mm) | 11 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 2 |
| Radial Rake Angle | 4 |
| Max Rotational Speed | 28100 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.984" |
| Body Diameter (mm) | 12 mm |
| Body Diameter (Inch) | 0.472" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 25 mm |
