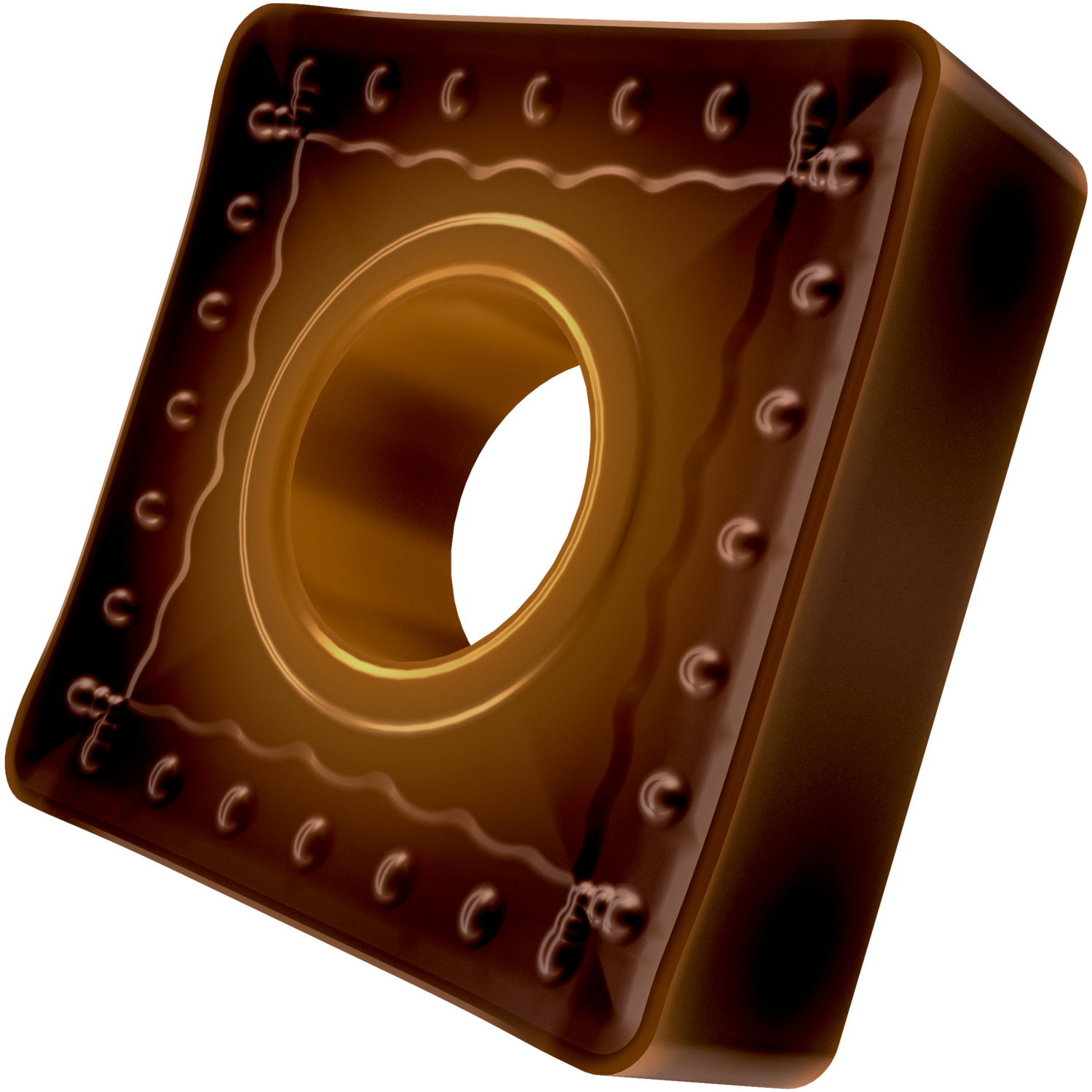

Single-sided negative turning insert, square with inscribed circle diameter of 25.4 mm, 7.94 mm thick, 2.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for medium to extra heavy machining of steels.
Product Specifications
| EDP Number | 7977398 |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 9.12 mm |
| Fixing Hole Diameter (Inch) | 0.359" |
| Cutting Edge Length (mm) | 25.4 mm |
| Cutting Edge Length (Inch) | 1" |
| Inscribed Circle Diameter (mm) | 25.4 mm |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (mm) | 7.94 mm |
| Insert Thickness (Inch) | 0.313" |
| Corner Radius (mm) | 2.4 mm |
| Corner Radius (Inch) | 0.094" |
| Coating Process | PVD |
| Coating | T8430 |
| Surface Color | Golden - Brown |
| Chipbreaker Manufacturer's Designation | OR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1"
Length (Decimal Inch):
1.0000"
Length (mm):
25.4mm
Inscribed Circle (Inch):
1"
Inscribed Circle (Decimal Inch):
1.0000"
Inscribed Circle (mm):
25.4mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3130"
Thickness (mm):
7.94mm
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0940"
Corner Radius (mm):
2.4mm
interval quantity:
10
