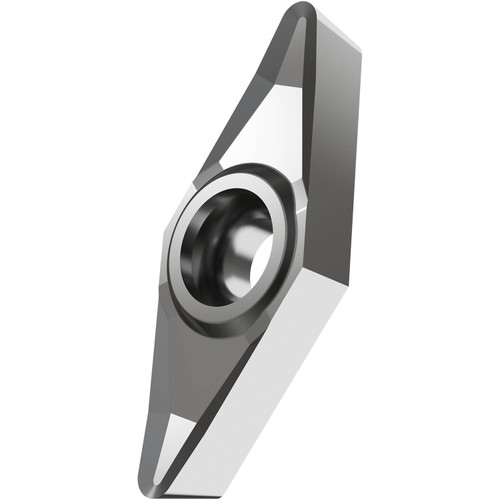

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 7.94 mm, 3.18 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05-N30, for fine to heavy machining of non-ferrous metals.
Product Specifications
| EDP Number | 6756199 |
| Max Depth of Cut (mm) | 3.3 mm |
| Max Depth of cut (Inch) | 0.13" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.4 mm |
| Fixing Hole Diameter (Inch) | 0.134" |
| Cutting Edge Length (mm) | 13.8 mm |
| Cutting Edge Length (Inch) | 0.543" |
| Inscribed Circle Diameter (mm) | 7.94 mm |
| Inscribed Circle Diameter (Inch) | 0.313" |
| Insert Thickness (mm) | 3.43 mm |
| Insert Thickness (Inch) | 0.135" |
| Corner Radius (mm) | 0.2 mm |
| Corner Radius (Inch) | 0.008" |
| Coating Process | PVD |
| Coating | T0315 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Chipbreaker Manufacturer's Designation | AL |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
35/64"
Length (Decimal Inch):
0.5430"
Length (mm):
13.8mm
Inscribed Circle (Inch):
5/16"
Inscribed Circle (Decimal Inch):
0.3130"
Inscribed Circle (mm):
7.94mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1350"
Thickness (mm):
3.43mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.2mm
interval quantity:
10
