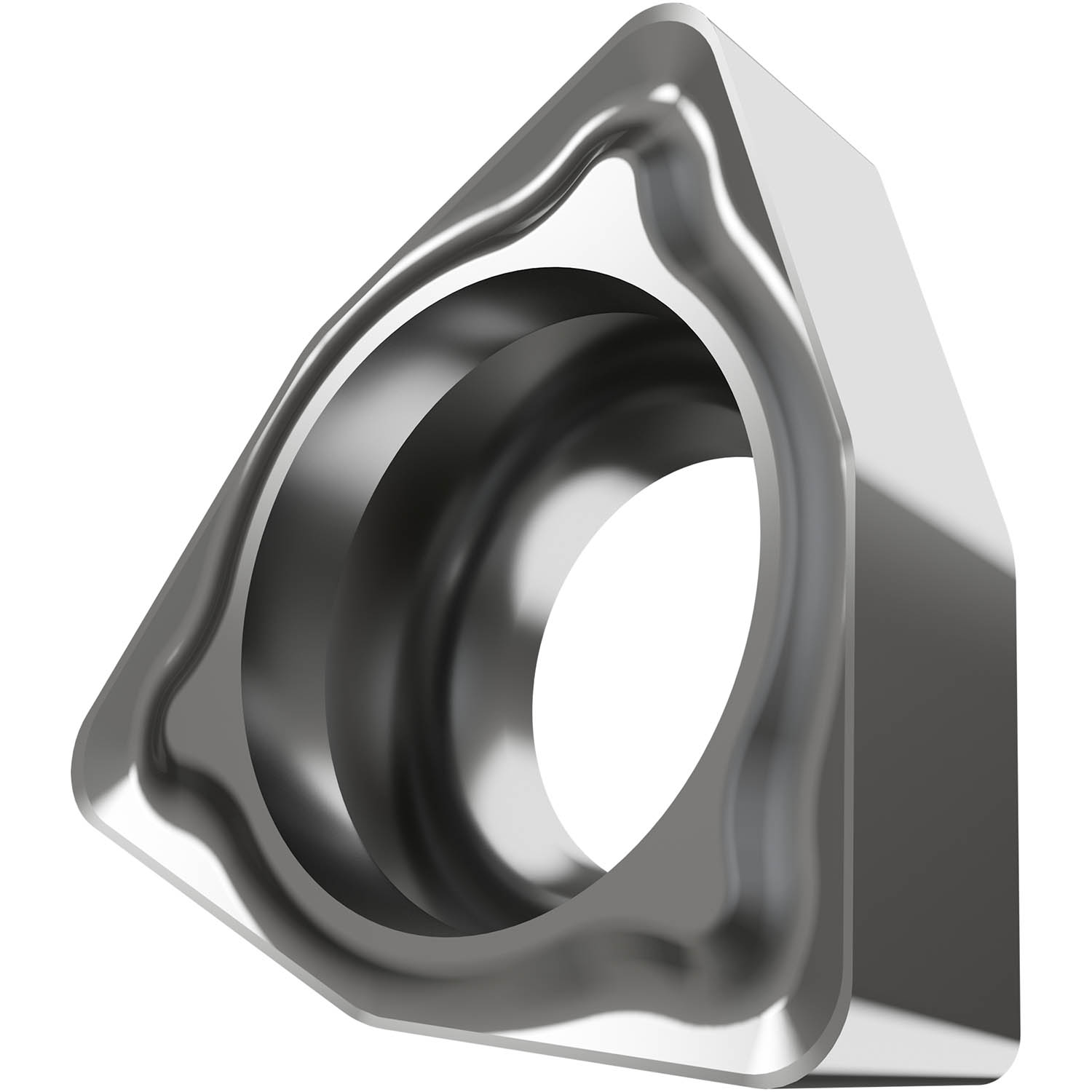

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 3.97 mm, 1.59 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons.
Product Specifications
| EDP Number | 6756166 |
| Max Depth of Cut (mm) | 1.4 mm |
| Max Depth of cut (Inch) | 0.055" |
| Fixing Hole Diameter (mm) | 2.2 mm |
| Fixing Hole Diameter (Inch) | 0.087" |
| Cutting Edge Length (mm) | 2.7 mm |
| Cutting Edge Length (Inch) | 0.106" |
| Inscribed Circle Diameter (mm) | 3.97 mm |
| Inscribed Circle Diameter (Inch) | 0.156" |
| Insert Thickness (mm) | 1.59 mm |
| Insert Thickness (Inch) | 0.063" |
| Corner Radius (mm) | 0.2 mm |
| Corner Radius (Inch) | 0.008" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Chipbreaker Manufacturer's Designation | FF2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
7/64"
Length (Decimal Inch):
0.1060"
Length (mm):
2.7mm
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1560"
Inscribed Circle (mm):
3.97mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0630"
Thickness (mm):
1.59mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.2mm
interval quantity:
10
