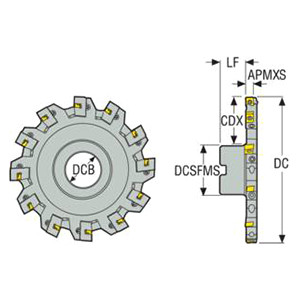

Product Specifications
| Manufacturer Part Number | 02713384 |
| Cutting Diameter (mm) | 250.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Diameter Bolt Circle 1 (mm) | 66.70mm |
| Maximum Cutting Diameter (mm) | 250.00mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Functional Length (mm) | 50.00mm |
| Keyway Width (mm) | 16.40mm |
| Cutting Width (mm) | 8.00mm |
| Minimum Cutting Width (mm) | 8.00mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Depth of Key Way (mm) | 9.00mm |
| Maximum Cutting Depth (mm) | 78.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | 1 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 6000 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | RD..0803 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
8"
Cutting Width (Decimal Inch):
0.3150"
Cutting Width (mm):
8.00mm
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Cutter Diameter (Inch):
250"
Cutter Diameter (Decimal Inch):
9.8425"
Cutter Diameter (mm):
250.00mm
interval quantity:
1
