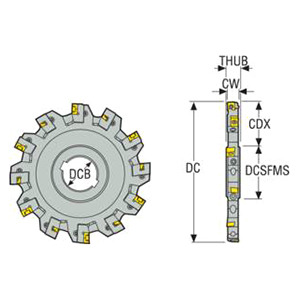

Seco Tools 02740498 | 335.18-10.00-XL0809N 254.00mm Diameter x 13.94mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

$3,734.50
Brand:
Seco Tools
Cutting Width (Inch):
12"
Cutting Width (Decimal Inch):
0.4724"
Cutting Width (mm):
12.00mm
Maximum Depth of Cut (Inch):
13/22"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
Cutter Diameter (Inch):
254"
Cutter Diameter (Decimal Inch):
10.0000"
Cutter Diameter (mm):
254.00mm
interval quantity:
1
SKU:
23280822
Weight:
1.23 LBS
Shipping:
Free Shipping
Seco Tools 02740498 | 335.18-10.00-XL0809N 254.00mm Diameter x 13.94mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

Product Specifications
Manufacturer Part Number02740498
Cutting Diameter (Decimal Inch)10.000"
Cutting Diameter (mm)254.00mm
Connection Bore Diameter (Decimal Inch)2.000"
Connection Bore Diameter (mm)50.80mm
Contact Surface Diameter Machine Side (Decimal Inch)3.000"
Contact Surface Diameter Machine Side (mm)76.20mm
Functional Length (Decimal Inch)0.549"
Functional Length (mm)13.94mm
Keyway Width (Decimal Inch)0.500"
Keyway Width (mm)12.70mm
Cutting Width (Decimal Inch)0.472"
Cutting Width (mm)12.00mm
Minimum Cutting Width (Decimal Inch)0.472"
Minimum Cutting Width (mm)12.00mm
Maximum Cutting Width (Decimal Inch)0.591"
Maximum Depth of Cut (Decimal Inch)0.591"
Maximum Depth of Cut (mm)15.00mm
Maximum Cutting Depth (Decimal Inch)3.386"
Maximum Cutting Depth (mm)86.00mm
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Rake Radial Angle (Degree)-8 Degree
Cutting DirectionNeutral
Maximum Rotational Speed (rpm)6000 rpm
Cutting Pitch DensityNormal
Pocket Seat Code of The CutterLNK.0605 / LNK.0805
Cutting Item Material TypeSteel
Shank TypeArbor hole
Product TypeIndexable Slotting Cutter
