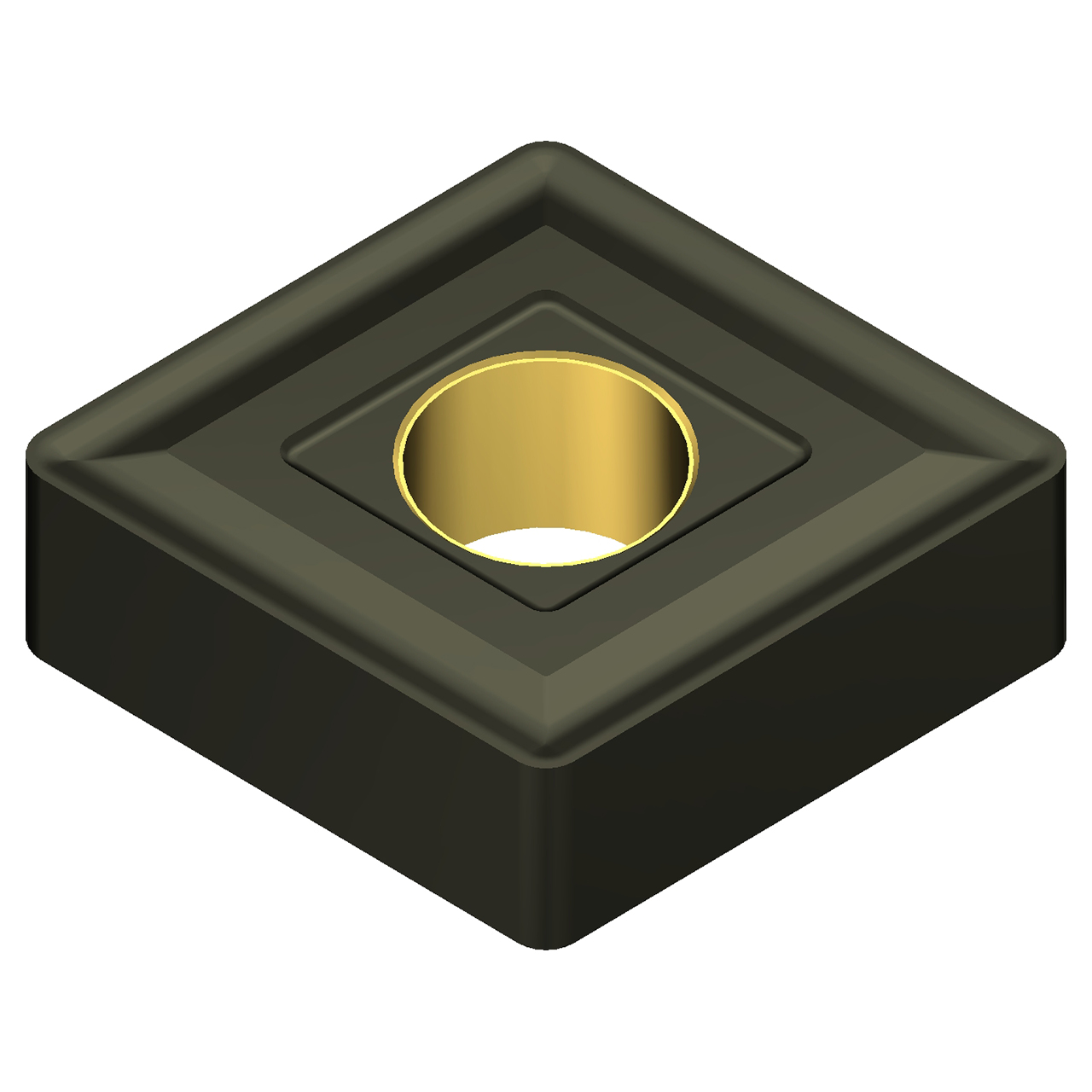

Product Specifications
| EDP Number | 191RCAC |
| Product Code-ANSI | CNMG433EGZ-AC420K |
| Product Code-ISO | CNMG120412N-GZ |
| Manufacturer Grade Identification | AC420K |
| Series | AC420K |
| Cutting Edge Length (Decimal Inch) | 0.5079" |
| Cutting Edge Length (mm) | 12.90mm |
| Nose Radius (Decimal Inch) | 0.0472" |
| Nose Radius (mm) | 1.20mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.5000" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Hole Diameter (mm) | 5.16mm |
| Insert Thickness (Decimal Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | M |
| Chip Breaker | EGZ |
| Corner Angle | 80 |
| Insert Style | CNMG |
| Primary Workpiece Material | Cast Iron |
| Coating | Super FF coat |
| Coating Process | CVD |
| Standard Designation of the Grade, Main Application | K20, K15, K15 |
| Insert Holding Method | Pin & Clamp |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
CNMG
Insert Size:
433
Material:
Carbide
Length (Inch):
1/2"
Length (Decimal Inch):
0.5079"
Length (mm):
12.90mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0472"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
AC420K
interval quantity:
10
Ships:
From California in 1-2 Days
