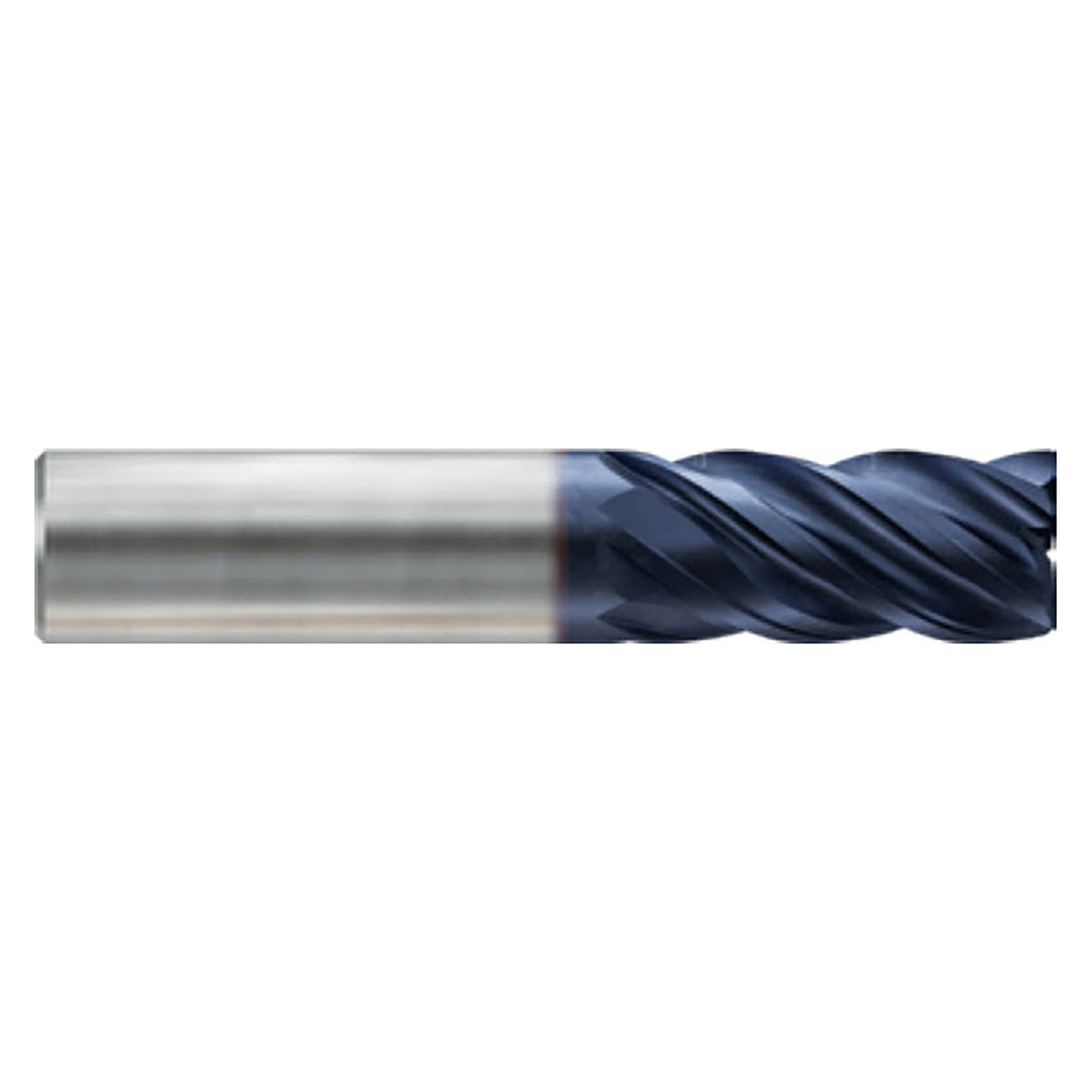

Product Specifications
| ETP Number | EMI43911 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (mm) | 20.64mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (Inch) | 2/67" |
| Corner Radius (mm) | 0.76mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | 38 |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |
| Product Type | Corner Radius End Mill |
