Product Specifications
| ETP Number | EMI43957 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 2.1250" |
| Length of Cut (Inch) | 2-1/8" |
| Length of Cut (mm) | 53.98mm |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (mm) | 114.30mm |
| Corner Radius (Decimal Inch) | 0.1250" |
| Corner Radius (Inch) | 1/8" |
| Corner Radius (mm) | 3.18mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Chamfer Angle | 38 Degree |
| Helix Angle | 45 Degree |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

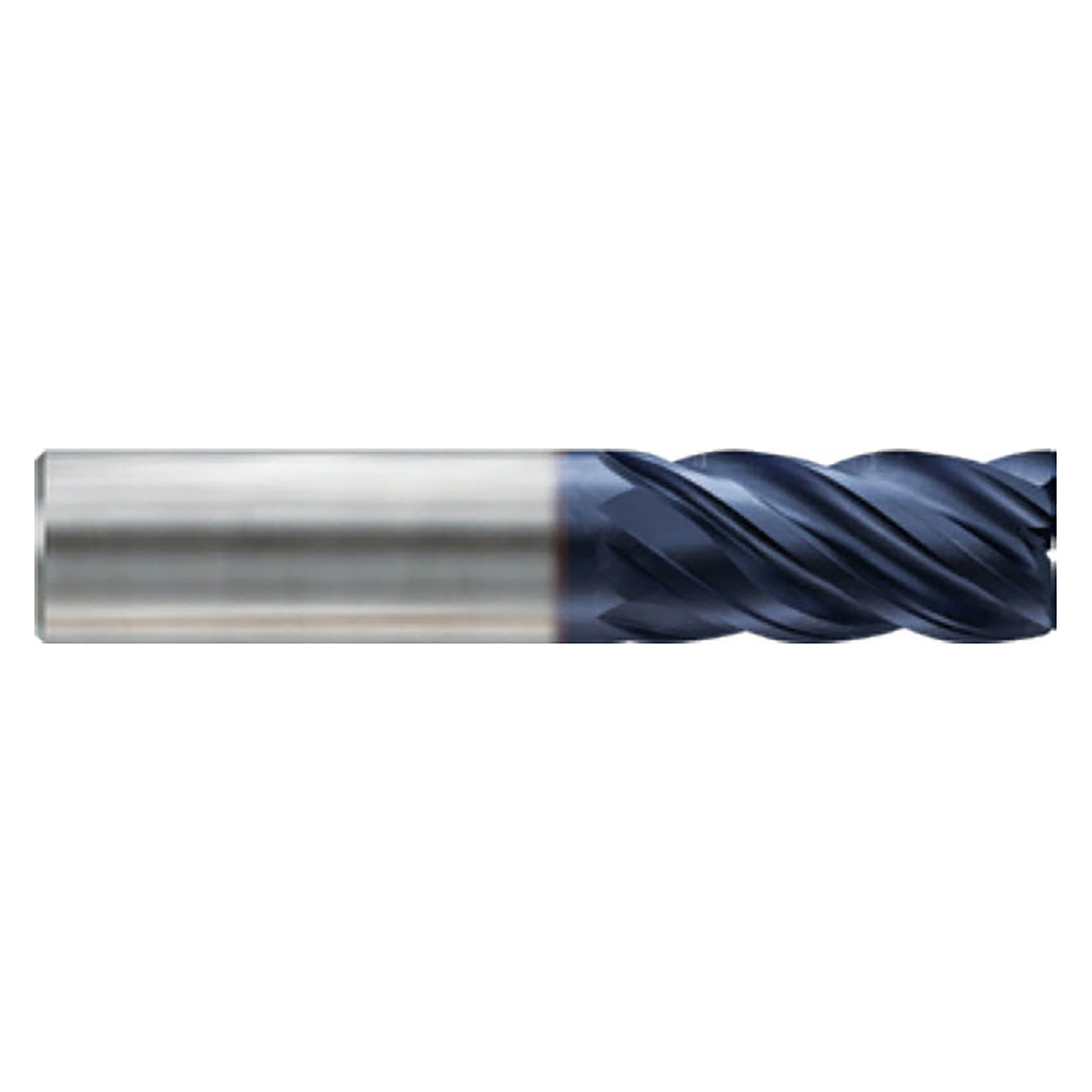

| Product Type | Corner Radius End Mill |
