Product Specifications

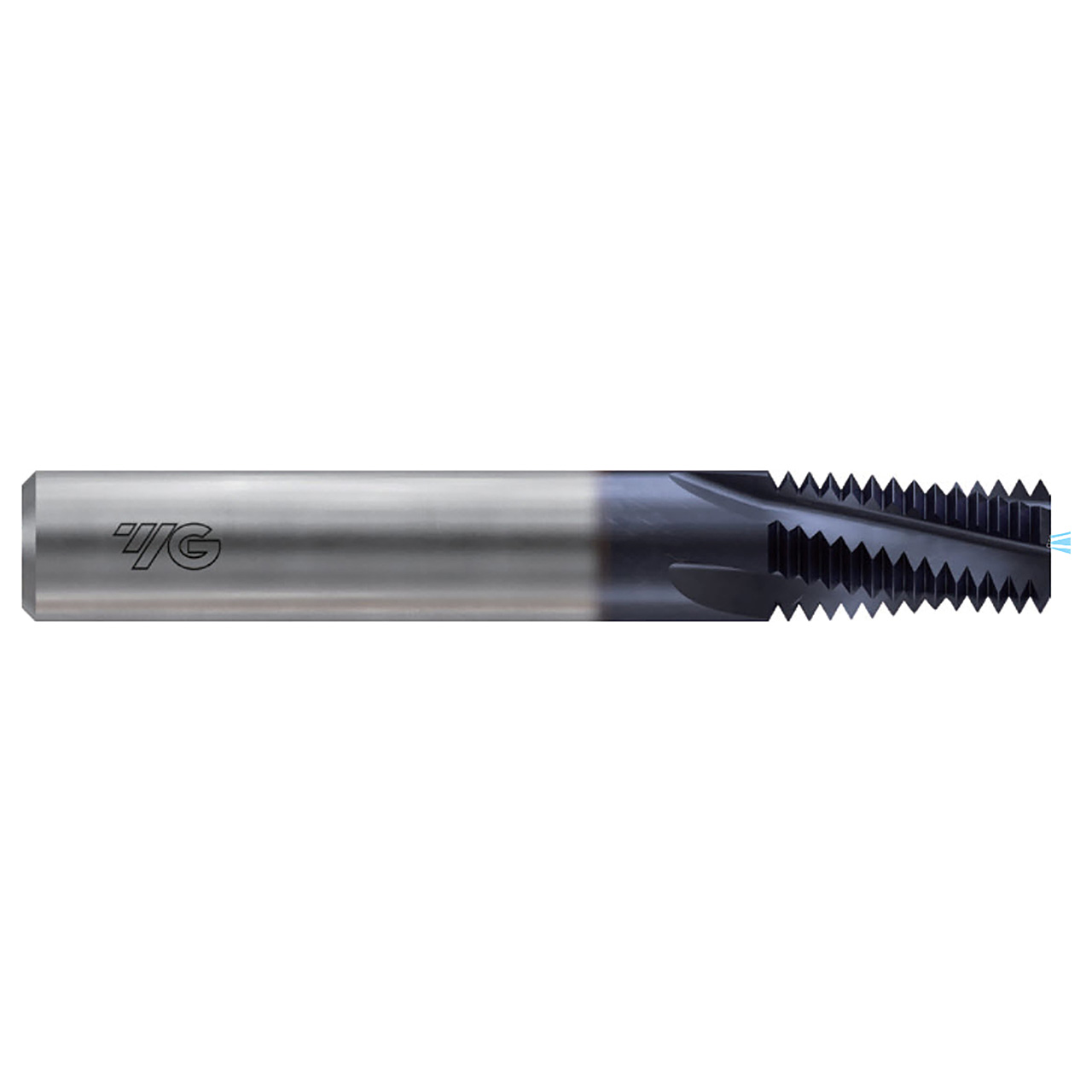

Manufacturer Part Number | L621F480 |
Thread Diameter (Inch) | 1/4" & 3/8" |
Threads Per Inch | 18 TPI |
Diameter (Inch) | 4/11" |
Diameter (Decimal Inch) | 0.3630" |
Diameter (mm) | 9.22mm |
Shank Diameter (Inch) | 3/8" |
Shank Diameter (Decimal Inch) | 0.3750" |
Shank Diameter (mm) | 9.53mm |
Thread Length (Inch) | 17/25" |
Thread Length (Decimal Inch) | 0.6800" |
Thread Length (mm) | 17.27mm |
Overall Length (Inch) | 3-1/2" |
Overall Length (Decimal Inch) | 3.5000" |
Overall Length (mm) | 88.90mm |
Number of Flutes | 4 |
Series | L621F |
Thread Series | NPT |
Shank Style | Plain |
Helix Angle | 15 Degree |
Coating | TiAIN |
Material | Carbide |
Type | NPT Thread ANSI B 1.20.1 |
Application | P,K,N |
Cutting Direction | Right |
