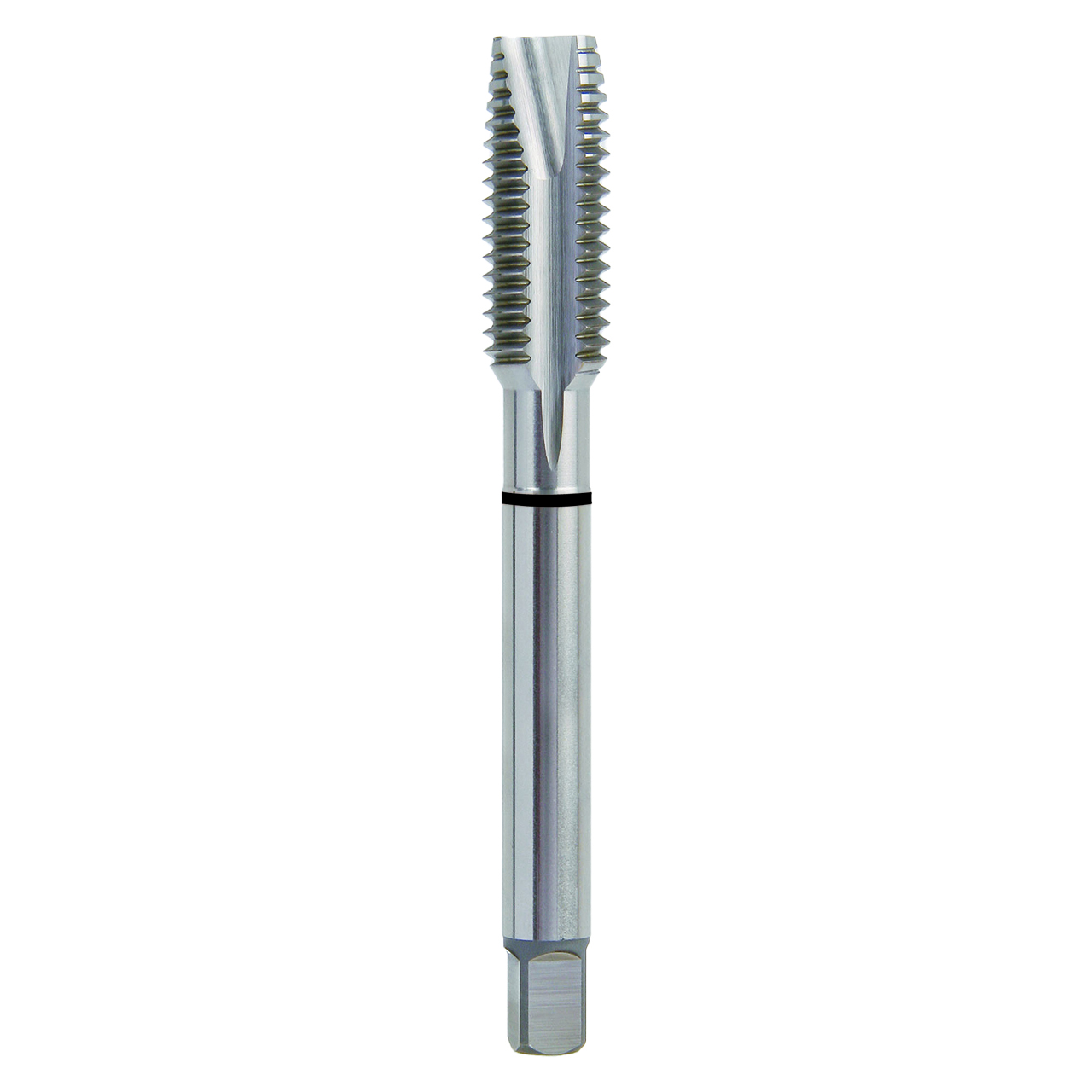

Product Specifications
| EDP Number | T3616S |
| Size & Pitch | M16x1.5 |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 1.0830" |
| Thread Length (mm) | 27.51mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.4690" |
| Connection (mm) | 12.19 x 9.14mm |
| Connection (Decimal Inch) | 0.48 x 0.36" |
| Useable Length (Decimal Inch) | 1.8110" |
| Neck Diameter (mm) | 11.91mm |
| Drill Size (Decimal Inch) | 0.5762" |
| Drill Size (mm) | 14.64mm |
| Useable Length (mm) | 46.00mm |
| Thread Series | MF |
| Pitch Limit | D6 |
| Chamfer Length | 4P-5P |
| Finish | Oxide |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T3-S |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
