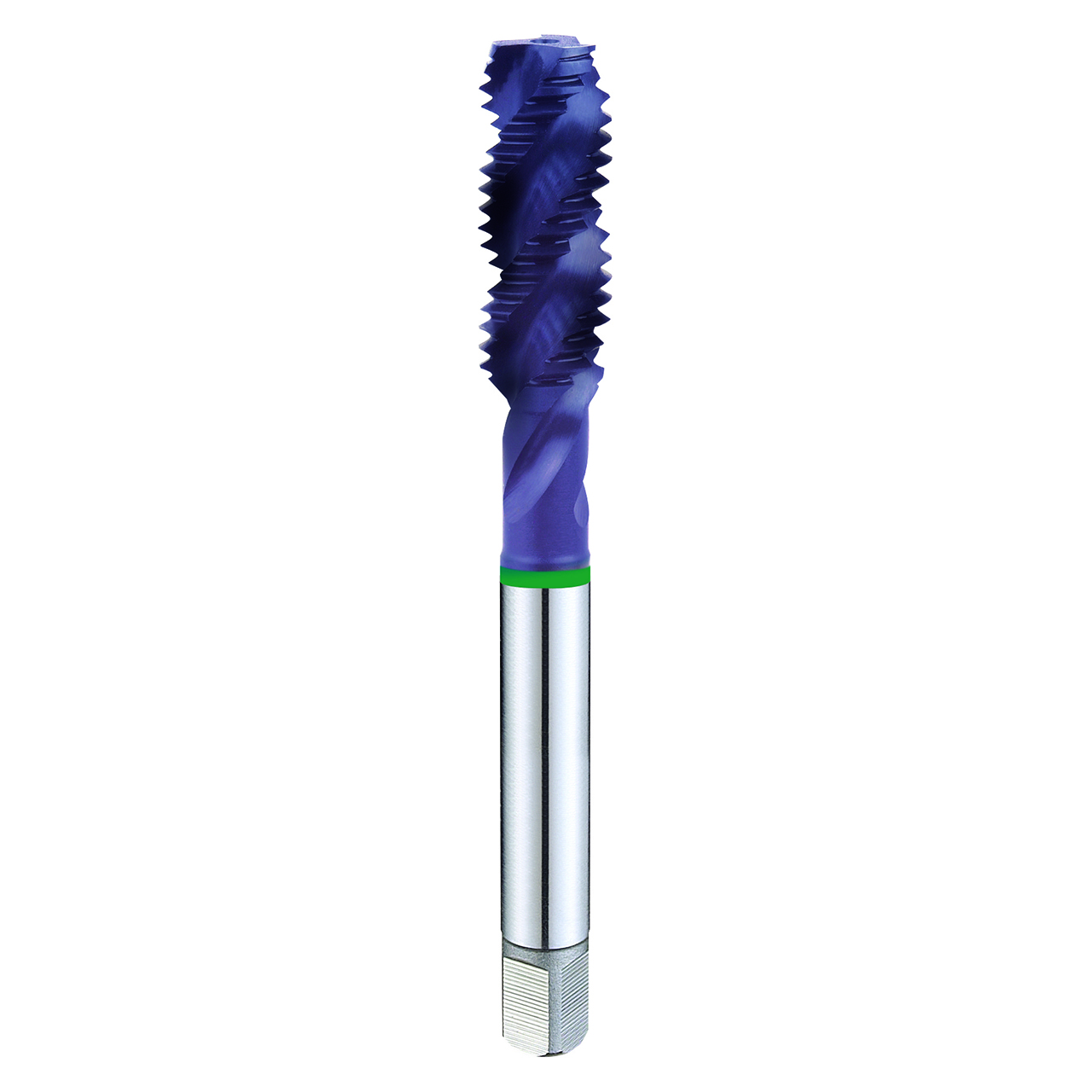

Product Specifications
| EDP Number | TCD607C |
| Size & Pitch | M16x2 |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 0.7090" |
| Thread Length (mm) | 18.01mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.4690" |
| Connection (mm) | 12.19 x 9.14mm |
| Connection (Decimal Inch) | 0.48 x 0.36" |
| Useable Length (Decimal Inch) | 2.2050" |
| Neck Diameter (mm) | 11.91mm |
| Drill Size (Decimal Inch) | 0.5583" |
| Drill Size (mm) | 14.18mm |
| Useable Length (mm) | 56.01mm |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Length | 2P-3P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Green |
| Trade Name | Combo Tap INOX |
| Series | TCD-C |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
