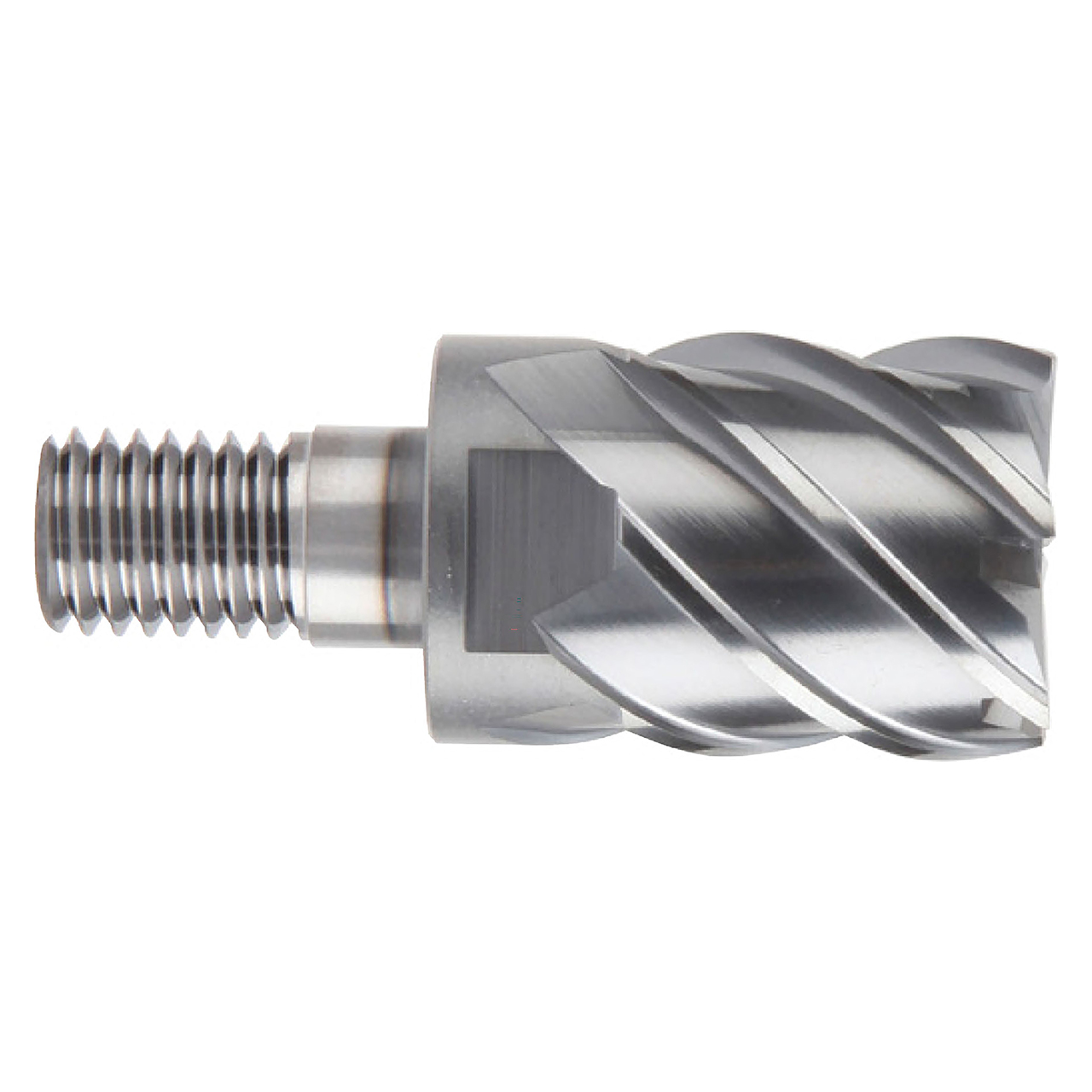

Product Specifications
| EDP Number | XGMF29040 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Neck Diameter (Decimal Inch) | 0.5910" |
| Neck Diameter (Inch) | 13/22" |
| Neck Diameter (mm) | 15.01mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Length Below Shank (Decimal Inch) | 1.0040" |
| Length Below Shank (Inch) | 1" |
| Length Below Shank (mm) | 25.50mm |
| Coupling Diameter (Decimal Inch) | 0.3350" |
| Coupling (Inch) | 1/3" |
| Coupling (mm) | 8.51mm |
| Wrench Width (Decimal Inch) | 0.5120" |
| Wrench Width (Inch) | 21/41" |
| Wrench Width (mm) | 13.00mm |
| Number of Flutes | 6 |
| Series | XGMF29 |
| Thread | M8 |
| Wrench Code | SPIS1300 |
| Helix Angle (Degree) | 45 Degree |
| Material | Carbide |
| Application | P |
| Cutting Direction | Right Hand |
| Cut Type | Center Cut |
| Type | Square |
| Product Type | Square End Mill Head |
