Product Specifications
Diameter (Decimal Inch) | TKS67705 |
Diameter (Decimal Inch) | 0.7500" |
Diameter (mm) | 19.05mm |
Overall Length (Decimal Inch) | 4.2500" |
Overall Length (mm) | 107.95mm |
Thread Length (Decimal Inch) | 1.0000" |
Thread Length (mm) | 25.40" |
Square Length (Decimal Inch) | 0.6900" |
Square Length (mm) | 17.53mm |
Shank Diameter (Decimal Inch) | 0.5900" |
Shank Diameter (mm) | 0.4420" |
Square Size (Decimal Inch) | 0.4420" |
Square Size (mm) | 11.23mm |
Neck Diameter (Decimal Inch) | 0.5770" |
Neck Diameter (mm) | 14.66mm |
Drill Size (Decimal Inch) | 0.6591" |
Drill Size (mm) | 16.74mm |
Useable (Decimal Inch) | 2.4800" |
Useable (mm) | 62.99mm |
Neck Length (Decimal Inch) | 2.4800" |
Neck Length (mm) | 62.99mm |
Neck Length (mm) | STFL |
Number of Flutes | 4 |
Size | 3/4" |
Pitch | 10 TPI |
Thread Series | UNC |
Pitch Limit | H5 |
Chamfer Type | Modified Bottom Chamfer Type |
Chamfer Length | 2P-3P |
Coating | TICN |
Material | HSS-PM |
Blank Standard | 302A |
Helix Angle | 45 Degree |
Coolant Through | No |

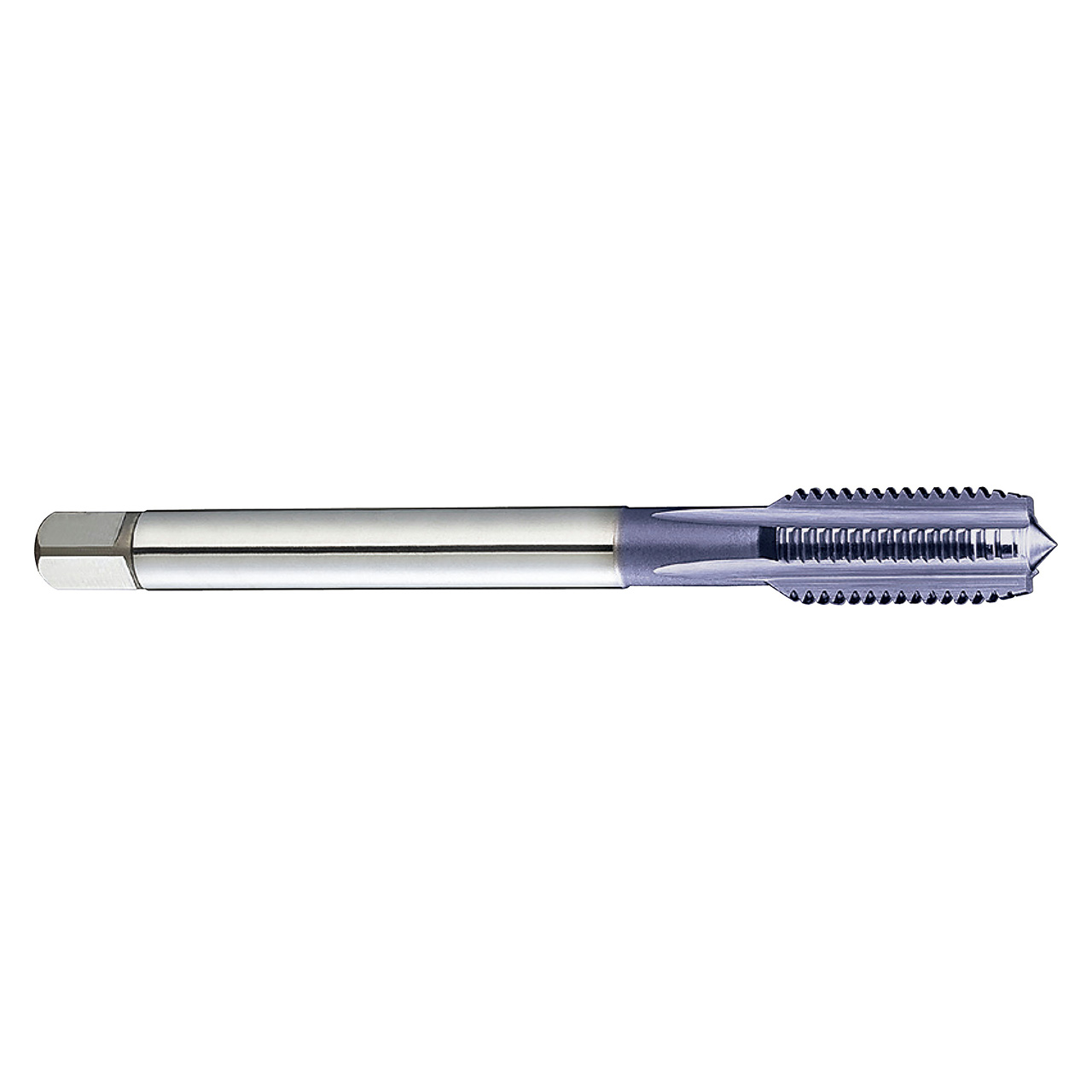

Product Type | Straight Flute Tap |
