| Manufacturer Part Number | TKS67723 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (mm) | 107.95mm |
| Thread Length (Decimal Inch) | 0.6250" |
| Thread Length (mm) | 15.88" |
| Square Length (Decimal Inch) | 0.6900" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Decimal Inch) | 0.5900" |
| Shank Diameter (mm) | 0.4420" |
| Square Size (Decimal Inch) | 0.4420" |
| Square Size (mm) | 11.23mm |
| Neck Diameter (Decimal Inch) | 0.5770" |
| Neck Diameter (mm) | 14.66mm |
| Drill Size (Decimal Inch) | 0.6932" |
| Drill Size (mm) | 17.61mm |
| Useable (Decimal Inch) | 2.4800" |
| Useable (mm) | 62.99mm |
| Neck Length (Decimal Inch) | 2.4800" |
| Neck Length (mm) | 62.99mm |
| Number of Flutes | 4 |
| Size | 3/4" |
| Pitch | 16 TPI |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Type | Modified Bottom Chamfer Type |
| Chamfer Length | 2P-3P |
| Coating | TICN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

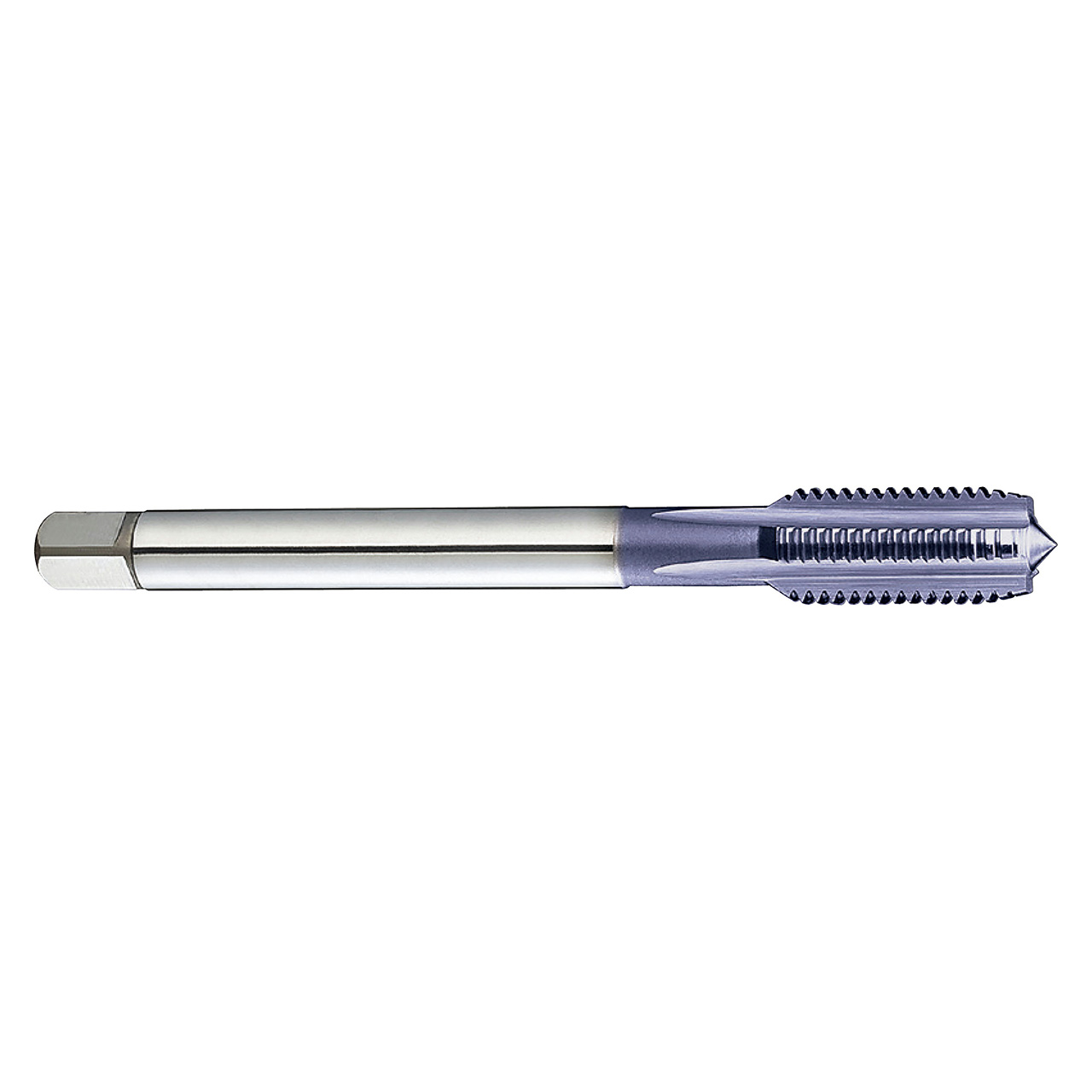

| Product Type | Straight Flute Tap |
