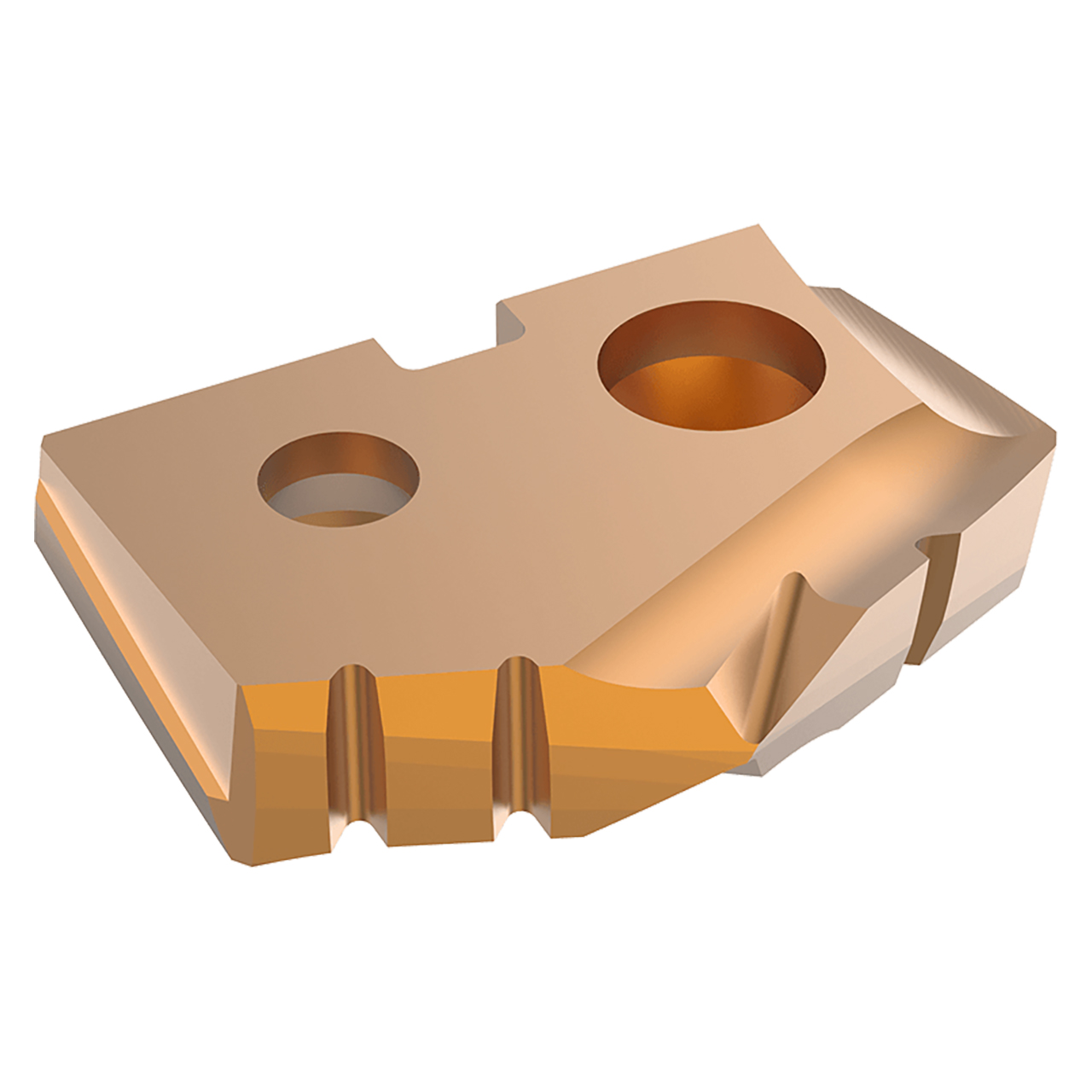

Allied Machine and Engineering 4C10P-14.5 | 14.50mm Diameter x 3.18mm Thickness 132 Degree Included Angle AM300 Coated C1(K35) 0 Series Spade Drill Insert

$74.00 $63.27
(You save $10.73)
interval quantity:
2
SKU:
23033131
UPC:
Weight:
0.01 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.

Features:

  • Notch Point geometry improves stability, hole straightness, and reduces thrust
  • Web Thin reduces thrust and increases point strength, allowing greater reliability
  • Helical Margin increases drill stability
  • Helical Flute improves tool life
    •
    Product Specifications
    # MFG4C10P-14.5
    Diameter (Inch)0.5709"
    Diameter (mm)14.50mm
    Thickness (Inch)1/8"
    Included Angle (Degree)132 Degree
    GeometryStandard
    MaterialC1(K35)
    CoatingAM300

    Warning:

    This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

    For more information, visit www.P65Warnings.ca.gov
