The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications

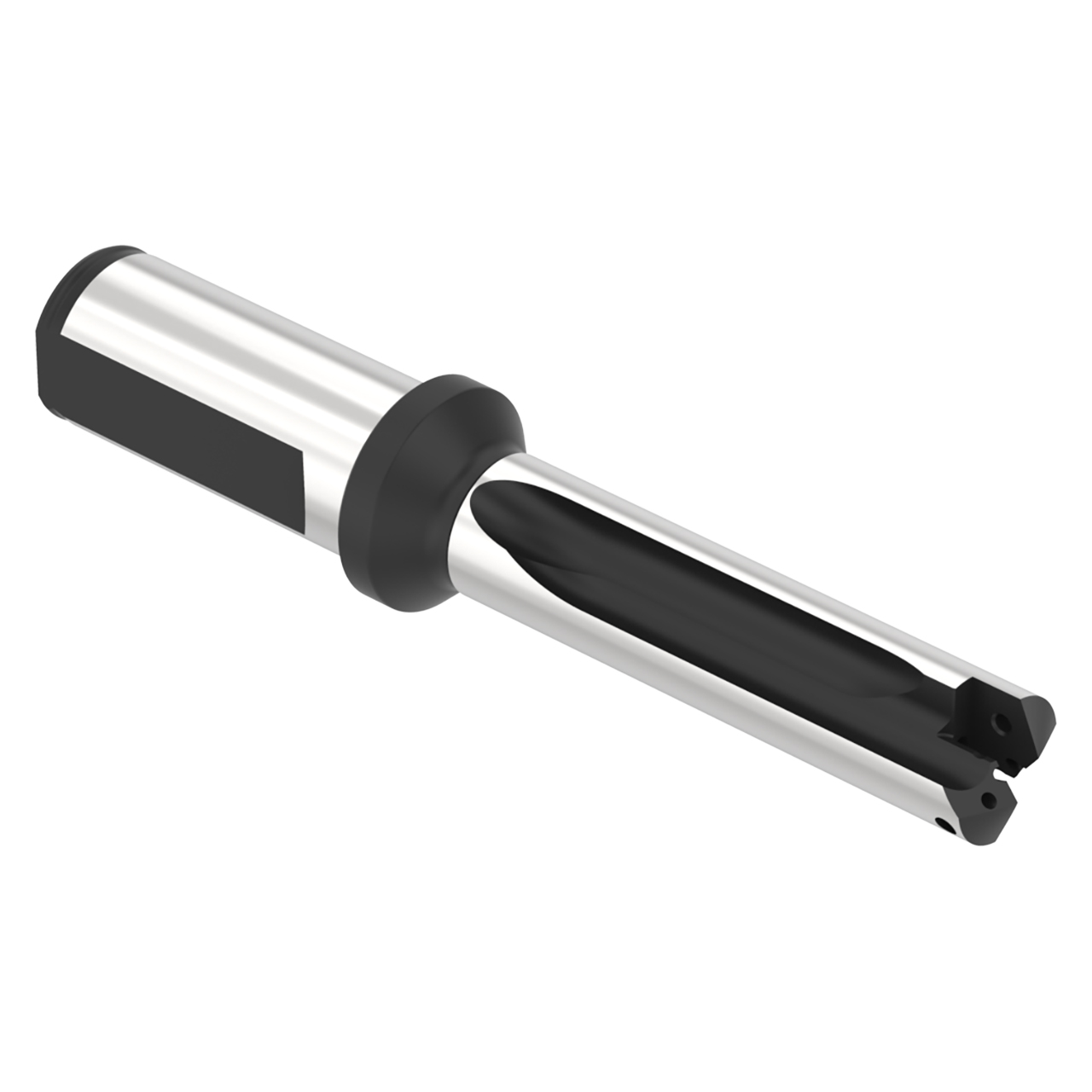

| # MFG | HTA1D03-25FM |
| Body Length (mm) | 100.92mm |
| Drill Depth (mm) | 62.87mm |
| Flute Type | Straight |
| Length Type | 3XD |
| Maximum Diameter (mm) | 24.4mm |
| Minimum Diameter (mm) | 22.86mm |
| Overall Length (mm) | 156.93mm |
| Series | 1 |
| Shank Diameter (mm) | 25mm |
| Shank Length (mm) | 56.01mm |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
1
Shank Type:
FLANGED
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25mm
Overall Length (mm):
156.93mm
Maximum Drill Depth (mm):
62.87mm
Flute Type:
Straight
interval quantity:
1
