Product Information

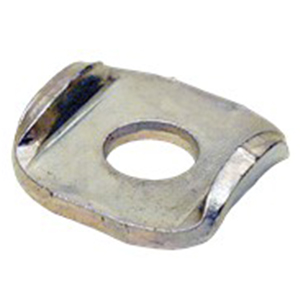

Use for mounting spindles on open-arm clamps. Use two flanged washers for each clamp, one above the arm and one below. Available for spindle sizes from #8-32 to 5/8-11 (M4 to M16 in metric). Also available in stainless steel.
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | - | ✔ | ✔ | |

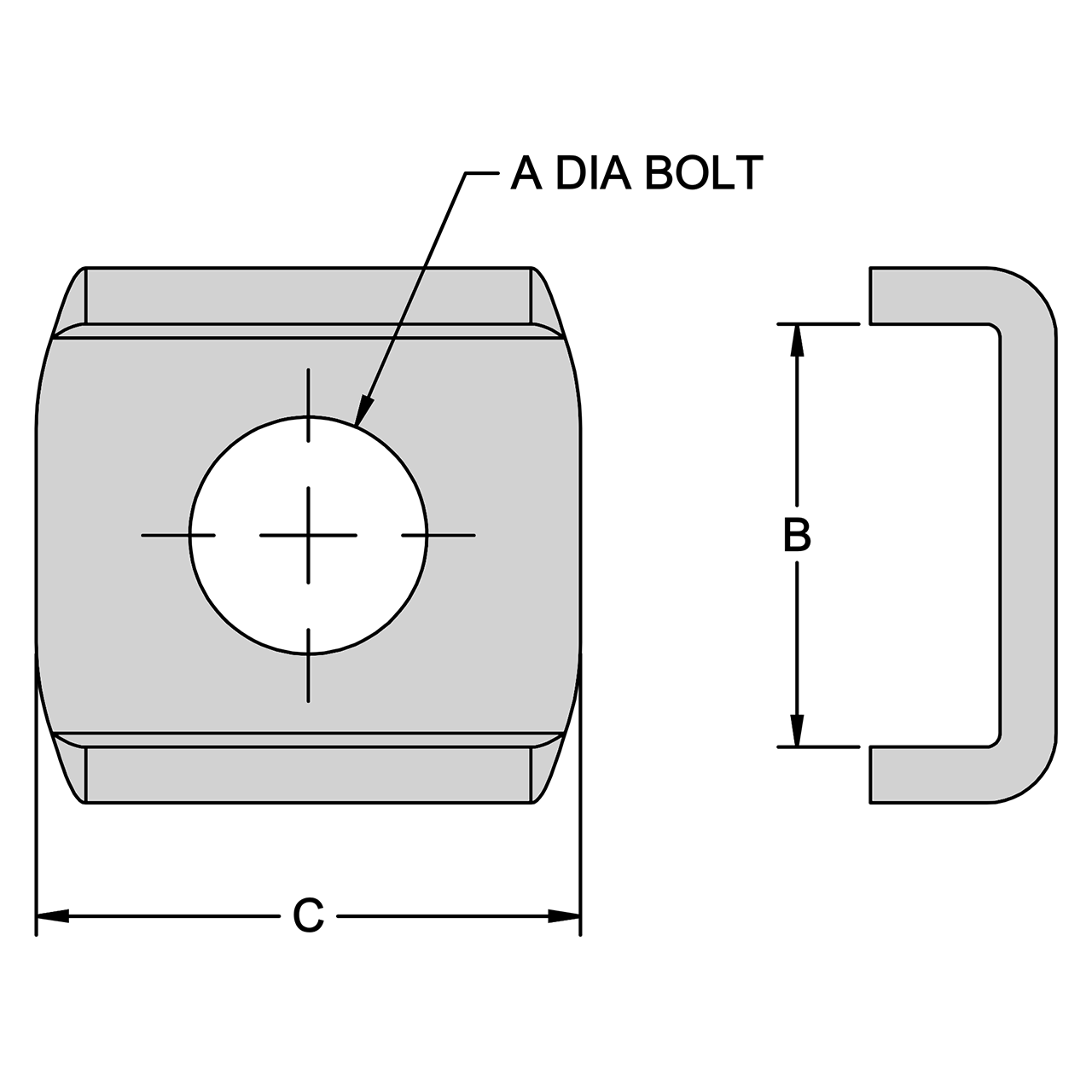

Parts Specification
| Part Number | A | B | C DIA |
| CL-51610-TW-S-PACKOF2 | 5/16-18 or M8 | 21/32 | 7/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
7/8"
Diameter (Decimal Inch):
0.8800"
Diameter (mm):
22.23mm
