Product Information
Attractive design suitable for many applications, including control levers and push/pull rods. The version shown here is made of cushion-grip plastic, a unique material that feels soft to the touch, comfortable yet rugged. Available in one knob size, with tapped-hole sizes 5/16-18 or 3/8-16. Molded-in brass insert provides superior thread strength. Non-standard thread sizes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.
Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black cushion-grip plastic (soft touch, matte finish, rugged, excellent impact resistance, operating temperatures to 150 Degree, excellent grip ability even when wet or oily, absorbs vibration) | - | Molded-in Brass Insert | ✔ | ✔ |

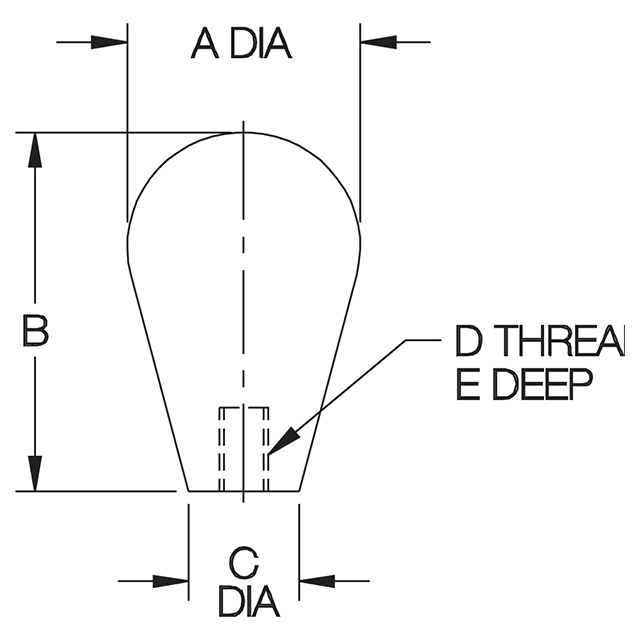

Parts Specification
| Part Number | A DIA | B | C DIA | D THREAD | E |
| CL-660-PTK-PACKOF2 | 1-5/8 | 2-1/2 | 7/8 | 3/8-16 | 5/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
3/8-16"
Diameter (Inch):
1-5/8"
Diameter (Decimal Inch):
1.6300"
Diameter (mm):
41.28mm
