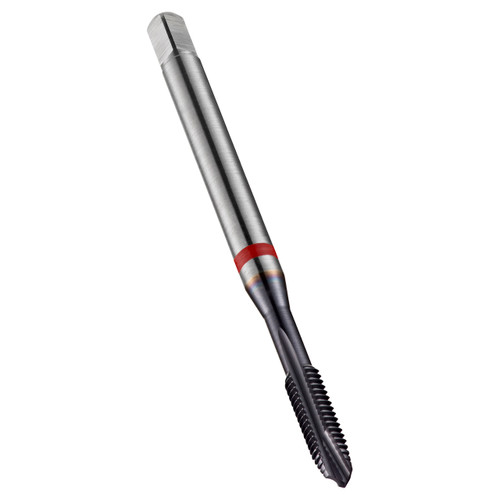

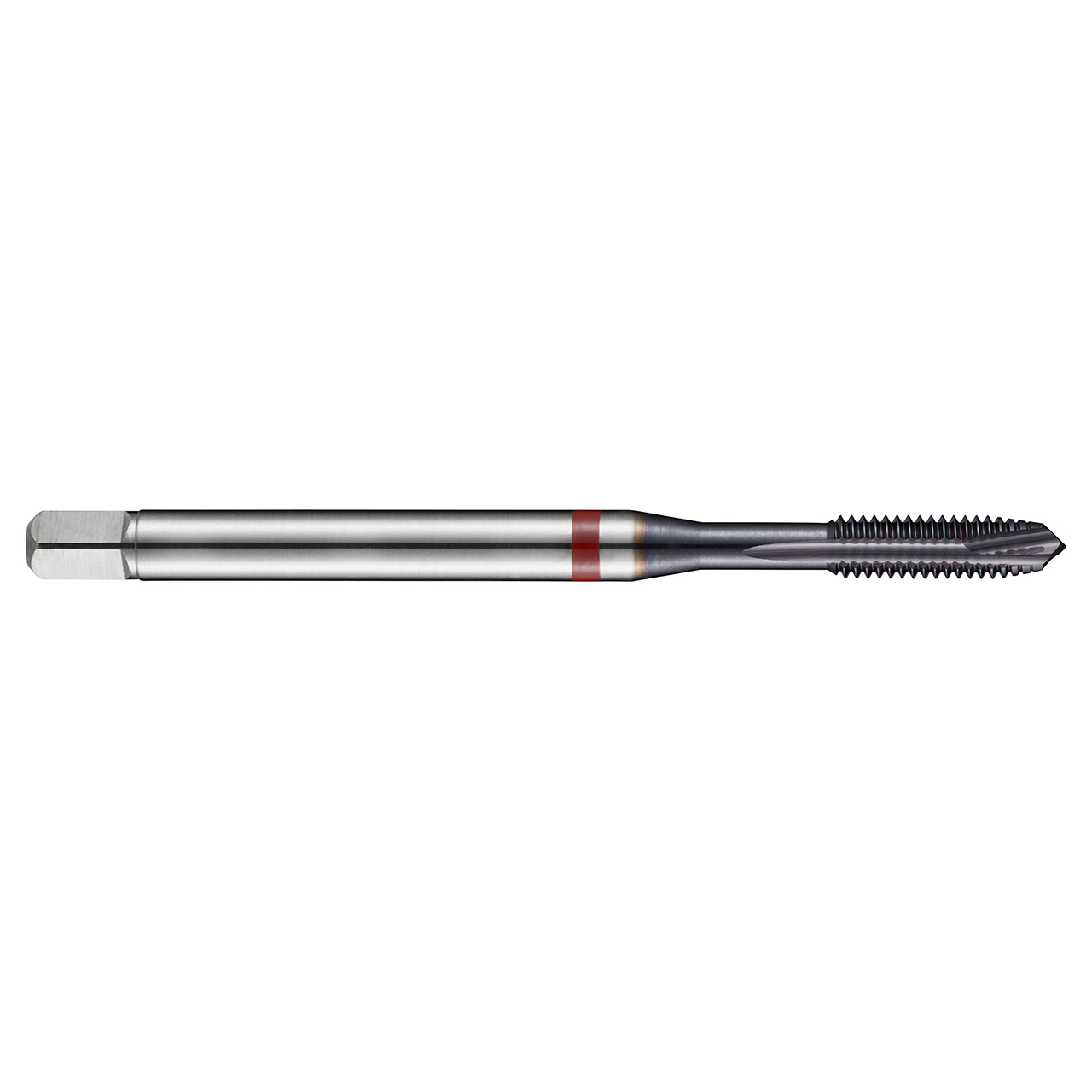

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 3.5433" |
| Clamping Width (mm) | 6.2mm |
| No of Flutes | 3 |
| Usable Length (mm) | 35mm |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 9 |
| Thread Diameter Size | 8 |
| Threading Length (mm) | 18mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
