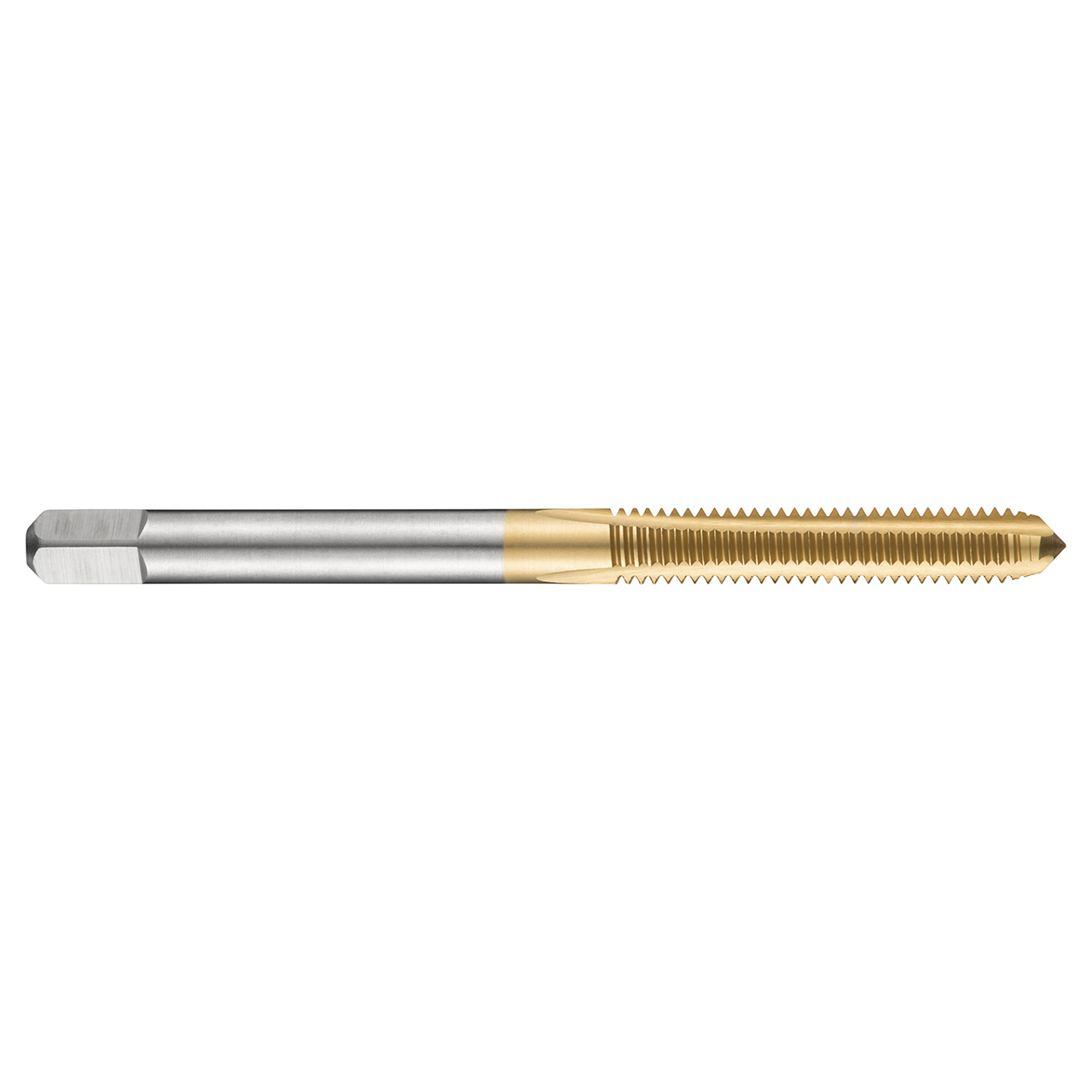

Dormer E504M5NO3 | 0.1969" Diameter x 2.2835" OAL 3 Flute TiN Coated Straight Flute Tap

$15.86
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022972
Weight:
0.35 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in free machining steel and cast-iron.


Product Specifications
Connection Diameter (Inch)0.1969"
Overall Length (Inch)2.2835"
Clamping Width (mm)4mm
No of Flutes3
Usable Length (mm)22mm
Thread Pitch (mm)0.8mm
Clamping Length7
Thread Diameter Size5
Threading Length (mm)11mm
Material CodeHSS
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiN
Surface ColorGold
Thread FormM-Metric coarse
