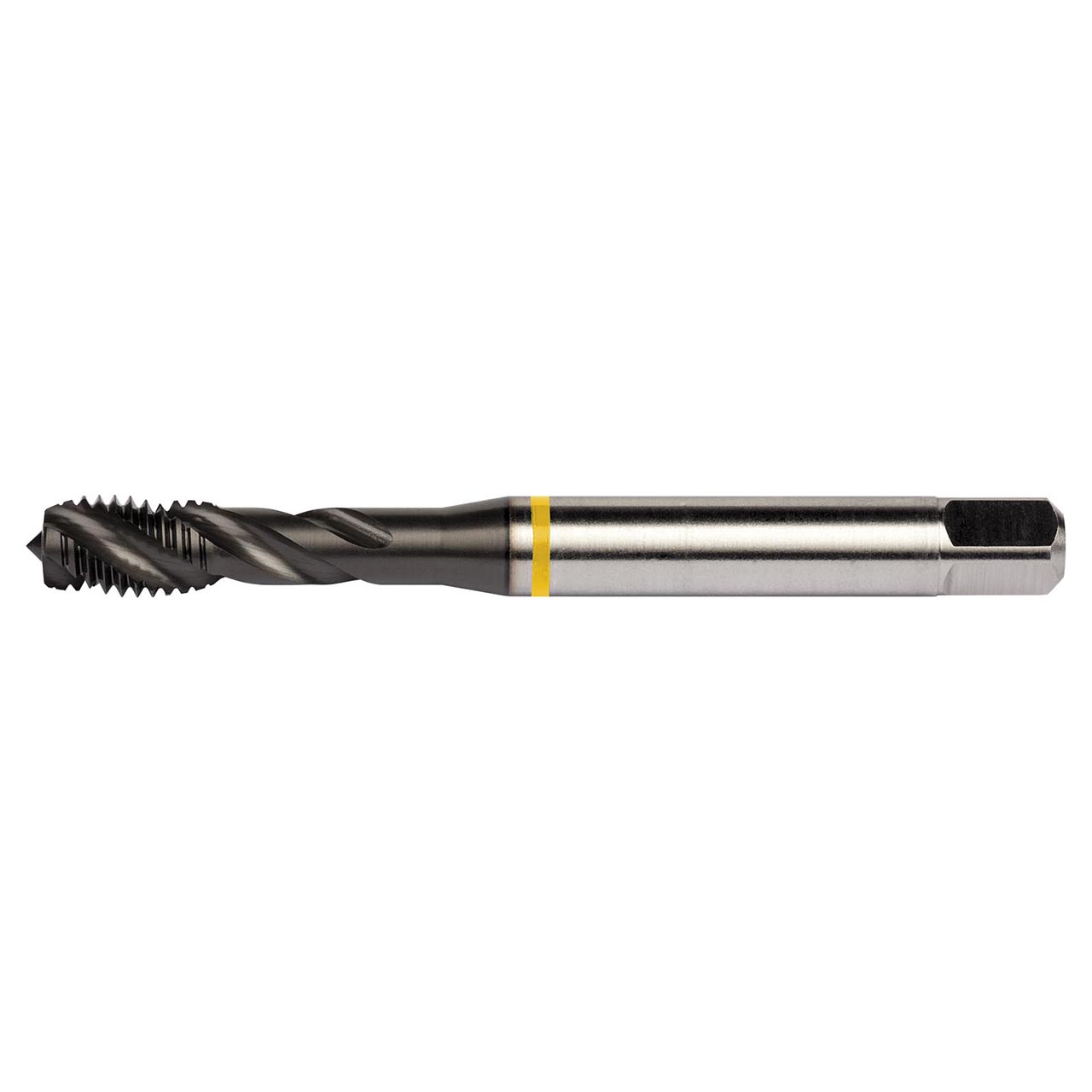

Dormer E624M5 | 0.194" Diameter x 2.7559" OAL 3 Flute TiAlN/Top Coated Spiral Flute Tap

$32.63
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026154
Weight:
0.37 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940" shank and 0.1500" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.194"
Overall Length (Inch)2.7559"
No of Flutes3
Flute Helix Angle40
Usable Length (mm)25mm
Thread Pitch (mm)0.8mm
Clamping Length6
Thread Diameter Size5
Threading Length (mm)8mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
