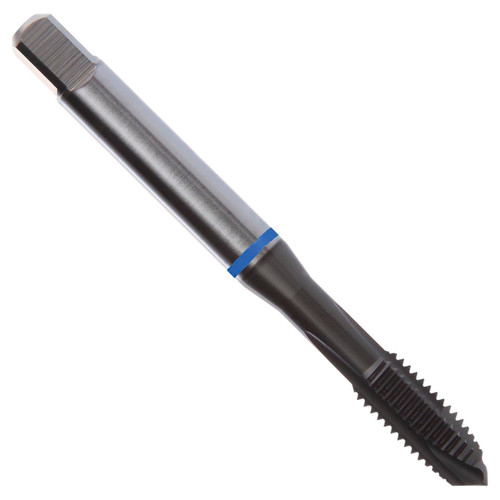

Dormer E629M8 | 0.318" Diameter x 3.5433" OAL 3 Flute SUPER-B Coated Spiral Point Tap

$30.33
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025940
Weight:
1.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.318"
Overall Length (Inch)3.5433"
No of Flutes3
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length10
Thread Diameter Size8
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
