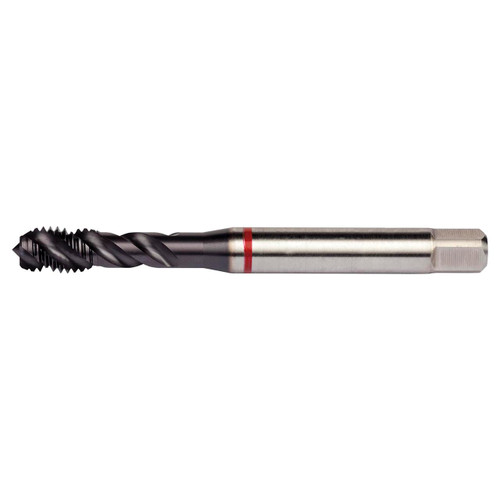

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M12 with 1.25mm pitch and D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.367" |
| Overall Length (Inch) | 3.937" |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 11 |
| Thread Diameter Size | 12 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | MF-Metric fine |
