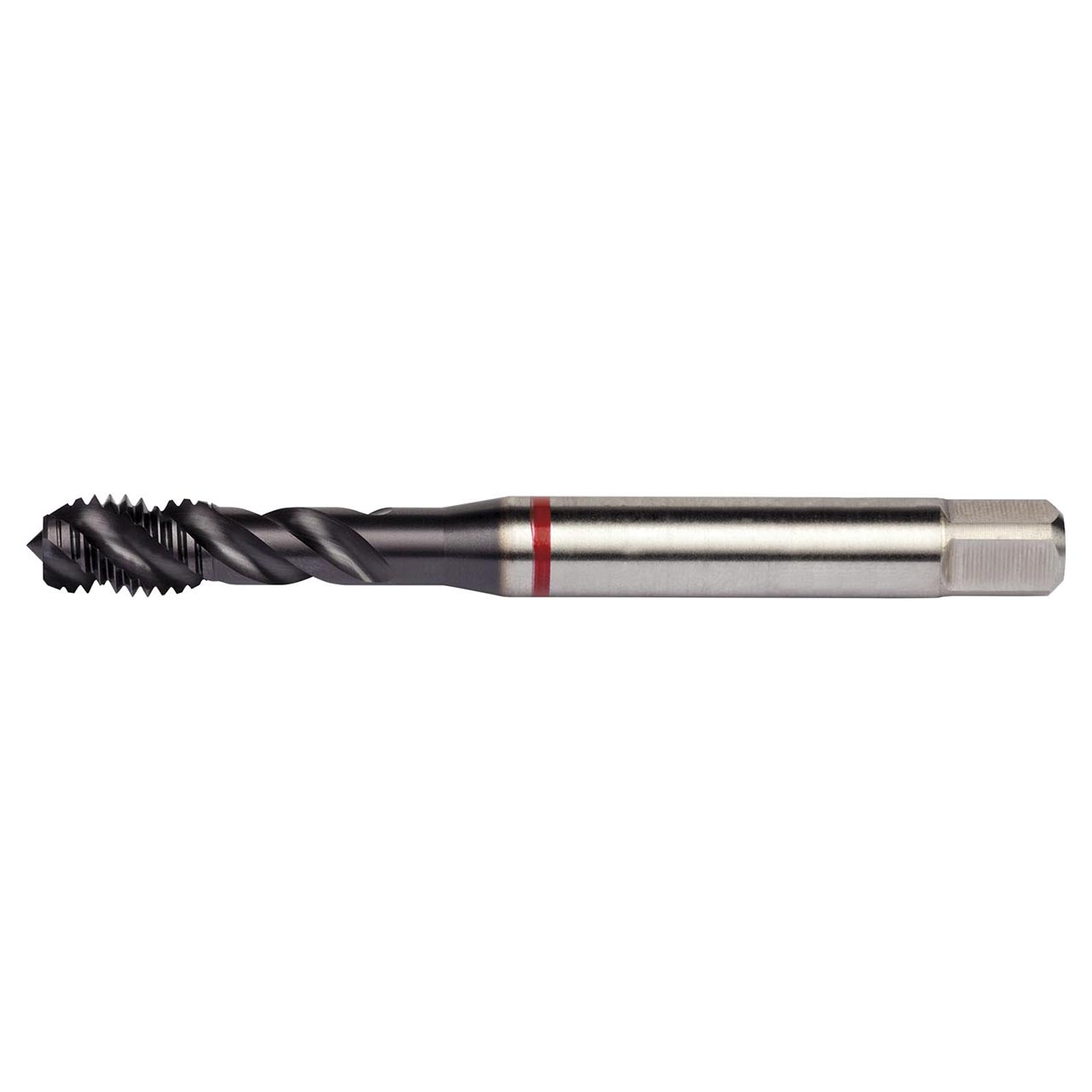

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/8" with 24 TPI and 2B class of fit with H4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810" shank and 0.2840" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.
Product Specifications
| Connection Diameter (Inch) | 0.381" |
| No of Flutes | 3 |
| Flute Helix Angle | 45 |
| Usable Length (Inch) | 1.476" |
| Thread Diameter Size | 3/8 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Threading Length (Inch) | 0.591" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
