Features:

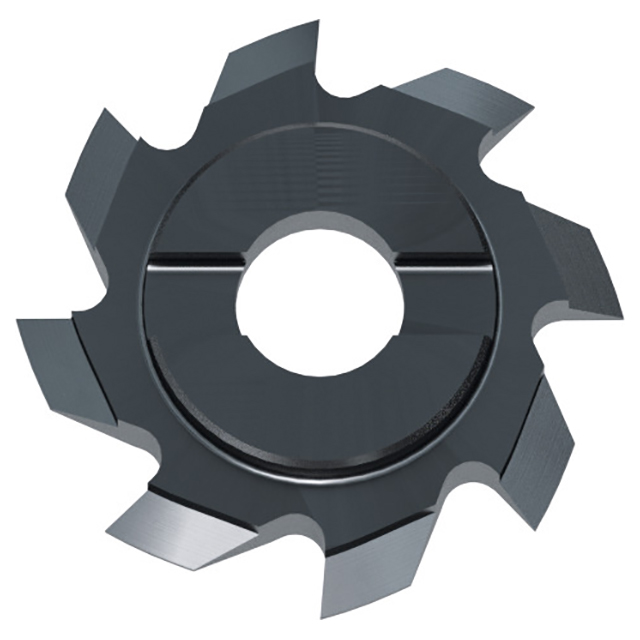

- ZIRK-GF one face insert for large diameter external threading
- Circular carbide face insert exchangeable external threads
- One tool for multiple thread sizes and pitches Replaceable, economical insert design
- One tool for multiple thread sizes and pitches Replaceable, economical insert design
Product Specifications
| Manufacturer Part Number | GF65130A.9515 |
| Cutting Diameter (mm) | 15.90mm |
| Thread Diameter Size | C |
| Thread Standard | UN/M/MF |
| Number of Flute | 8 |
| Cutting Edge Material | Carbide |
| Coating | ALCR-T42 |
| Tool Type | ZIRK-GF Insert |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Standard:
UN/M/MF
Pitch:
14 (1.75)
Finish/Coating:
ALCR-T42
