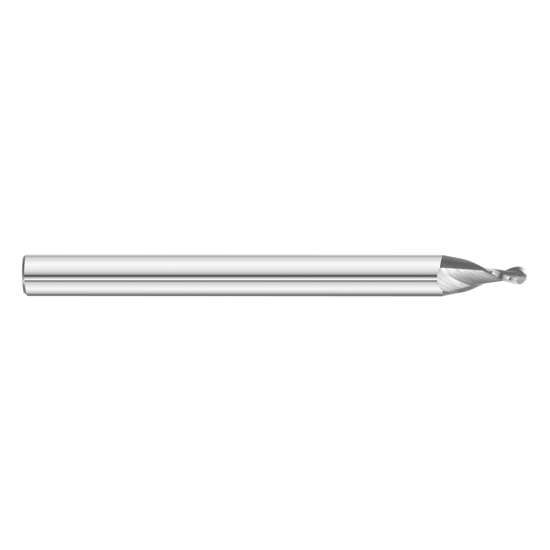

Fullerton Tool 30951 | 0.0260" Diameter x 1/8" Shank x 0.0780" LOC x 1-1/2" OAL 2 Flute Uncoated Solid Carbide Ball End Mill

$31.97 $20.14
(You save $11.83)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Decimal Inch):
0.0260"
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.0780"
Length of Cut (mm):
1.98mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25001649
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 30951 | 0.0260" Diameter x 1/8" Shank x 0.0780" LOC x 1-1/2" OAL 2 Flute Uncoated Solid Carbide Ball End Mill

Features

  • The 3215SM Sub-Miniature is a 2-flute, general purpose end mill designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It's offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215SM Sub-Miniature end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.0260"
Cutting Diameter (mm) 0.66mm
Cutting Flute Length (Decimal Inch) 0.0780"
Cutting Flute Length (mm) 1.98mm
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Sub-Miniature
Length Designator SM
