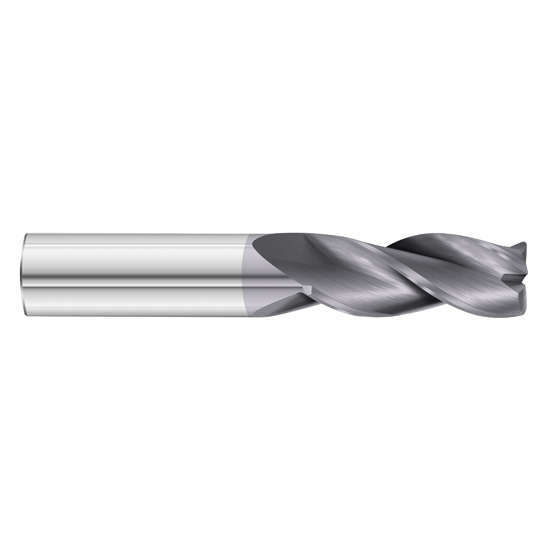

Fullerton Tool 33474 | 3/4" Diameter x 3/4" Shank x 1-5/8" LOC x 4" OAL 3 Flute TiAlN Solid Carbide Radius End Mill

$205.06 $129.19
(You save $75.87)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/4"
Number of Flutes:
3
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25001877
UPC:
Weight:
0.77 LBS
Shipping:
Free Shipping

Features

  • The 3335 Alloy Steel Rougher is a 3-flute, general purpose end mill designed for slotting, pocketing, and roughing in various alloy steels
  • Its unique flute geometry and corner radius allows for increased chip loads, strength, and added tool life
  • The 3335 Alloy Steel Rougher is stocked with TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.7500"
Cutting Diameter (mm) 19.05mm
Cutting Diameter (Inch) 3/4"
Cutting Flute Length (Decimal Inch) 1.6250"
Cutting Flute Length (mm) 41.28mm
Cutting Flute Length (Inch) 1-5/8"
Shank Diameter (Decimal Inch) 0.7500"
Shank Diameter (mm) 19.05mm
Shank Diameter (Inch) 3/4"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 35
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0300"
Radius (mm) 0.76mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
