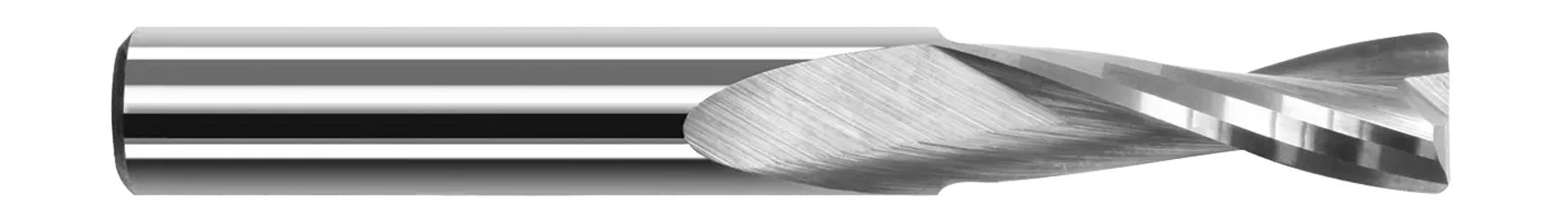

The solid carbide, 2 flute, corner radius upcut end mill for plastics has the ability to plunge and ramp due to its center cutting design, and has a slower helix which reduces lifting forces, making this an excellent choice for milling fiber-reinforced materials on vacuum table set ups.
- High rake, high relief design with large flute valley maximizes chip removal and performance
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- Center cutting design improves plunging and ramping
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0310" (1/32) |
| Length of Cut (Inch) | 0.0930" (3/32) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 2 |
| Corner Radius | 0.0050" |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/32"
Cutter Diameter (Decimal Inch):
0.0310"
Length of Cut (Inch):
3/32"
Length of Cut (Decimal Inch):
0.0930"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Corner Radius (Decimal Inch):
0.0050"
Number of Flutes:
2
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
