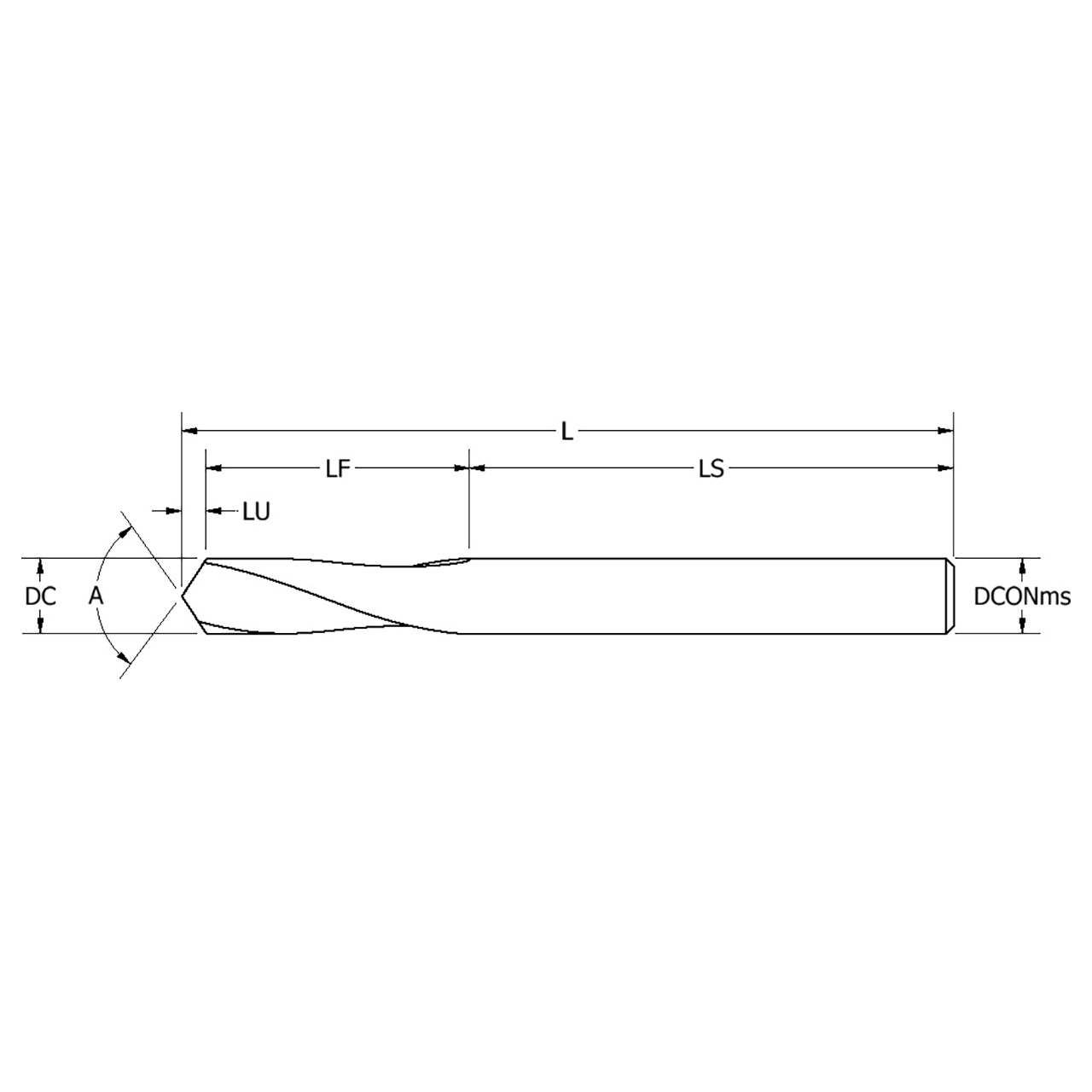

Product Specifications
| Manufacturer Part Number | 956-000-003 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Connection Diameter (Decimal Inch) | 1.000" |
| Overall Length (Decimal Inch) | 8.468" |
| Functional Length (Decimal Inch) | 2.718" |
| Length of Shank (Decimal Inch) | 5.283" |
| Usable Length (Decimal Inch) | 0.468" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 100 Degree |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Material | HSS |
| Product Type | Spotting Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Material:
HSS
Overall Length (Inch):
8-22/47"
Overall Length (Decimal Inch):
8.4681"
Overall Length (mm):
215.09mm
