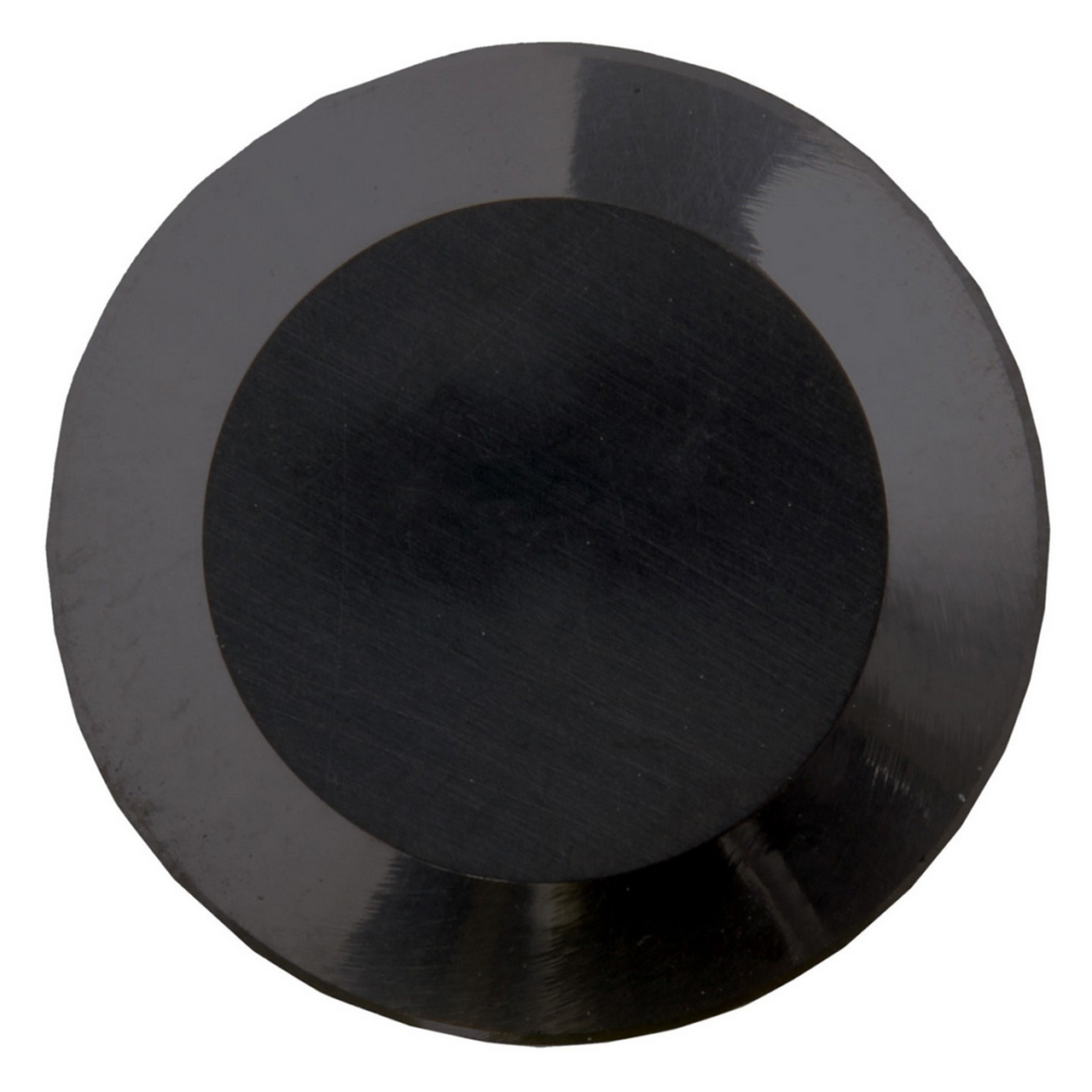

Features:
- Insert for external turning, facing, undercutting, roll machining
- Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
- Application: Semi-roughing to finishing of steel, cast iron, and hard materials
Product Specifications
| EDP Number | 8813077 |
| Inscribed Circle (Inch) | 1/4" |
| Inscribed Circle (mm) | 6.35mm |
| Thickness (Inch) | 0.180" |
| Thickness (mm) | 4.57mm |
| Application | External Turning | Facing | Roll Machining | Undercutting |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | A65 |
| Insert Holding Method | Clamp |
| Insert Shape | Round |
| Insert Size | 102 |
| Material | Ceramic |
| Primary Workpiece Material | Gray Cast Iron (K) | Hardened Materials (H) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
RCGX
Insert Size:
102
Material:
Ceramic;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Decimal Inch):
0.1800"
Thickness (mm):
4.57mm
Manufacturer's Grade:
A65
