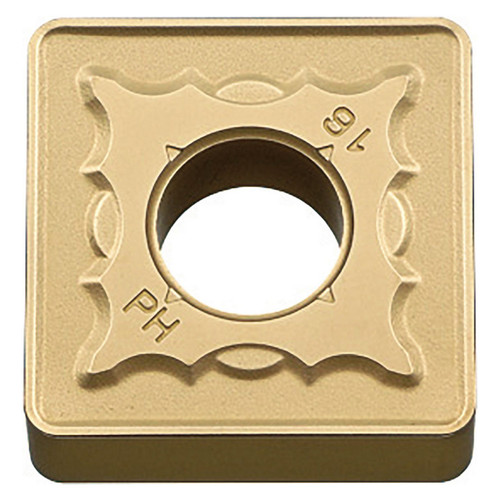

Features:
- Insert for external turning, facing, chamfering, boring
- 8 Cutting edges
- Special substrate and tough coating film provides thermal deformation and high wear resistance
- Application: Continuous to light interrupted steel machining (general use)
Product Specifications
| EDP Number | TAB05292 |
| Inscribed Circle (Inch) | 5/8" |
| Inscribed Circle (mm) | 15.875mm |
| Corner Radius (Inch) | 1/16" |
| Corner Radius (mm) | 1.60mm |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.35mm |
| Application | Boring | Chamfering | External Turning | Facing |
| Chipbreaker | PH |
| Coating Process | CVD |
| Cutting Range | Roughing |
| Hand | Neutral |
| Insert Grade | CA515 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 90 Degree Square |
| Insert Included Angle ( Degree) | 90 Degree |
| Insert Size | 544 |
| Material | Carbide |
| Number of Cutting Edges | 8 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
SNMG
Insert Size:
544
Material:
Carbide;Inscribed Circle (Inch)=5/8"""
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.60mm
Manufacturer's Grade:
CA515
